FIT80-4
ActiveTriad Magnetics
FIXED IND 65.04UH 6.8A 32.8 MOHM
FIT80-4
ActiveTriad Magnetics
FIXED IND 65.04UH 6.8A 32.8 MOHM
Description
General part information
FIT80-4

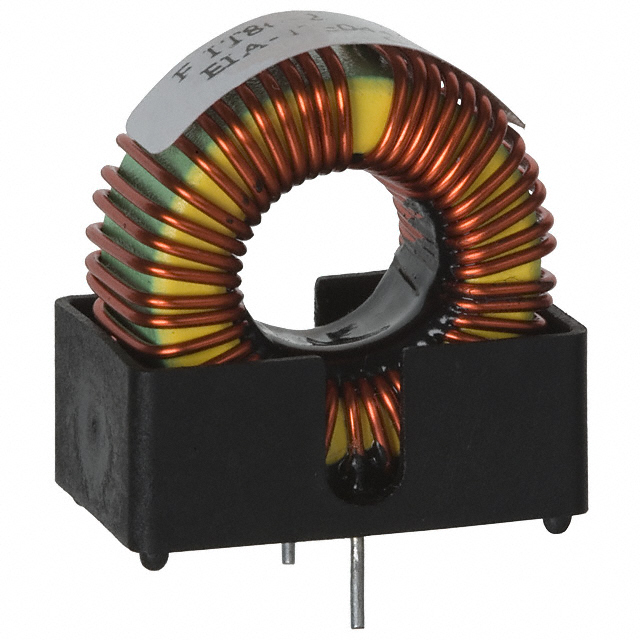

65.04 µH Unshielded Toroidal Inductor 6.8 A 32.8mOhm Max Radial, Vertical (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | FIT80-4 |
|---|---|
| Current Rating | 6.8 A |
| DC Resistance (DCR) (Max) | 32.8 mOhm |
| Height - Seated (Max) | 1.1 in |
| Inductance | 65.04 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Unshielded |
| Size / Dimension Length | 0.975 in |
| Size / Dimension Width | 0.625 in |
| Type | Toroidal |
