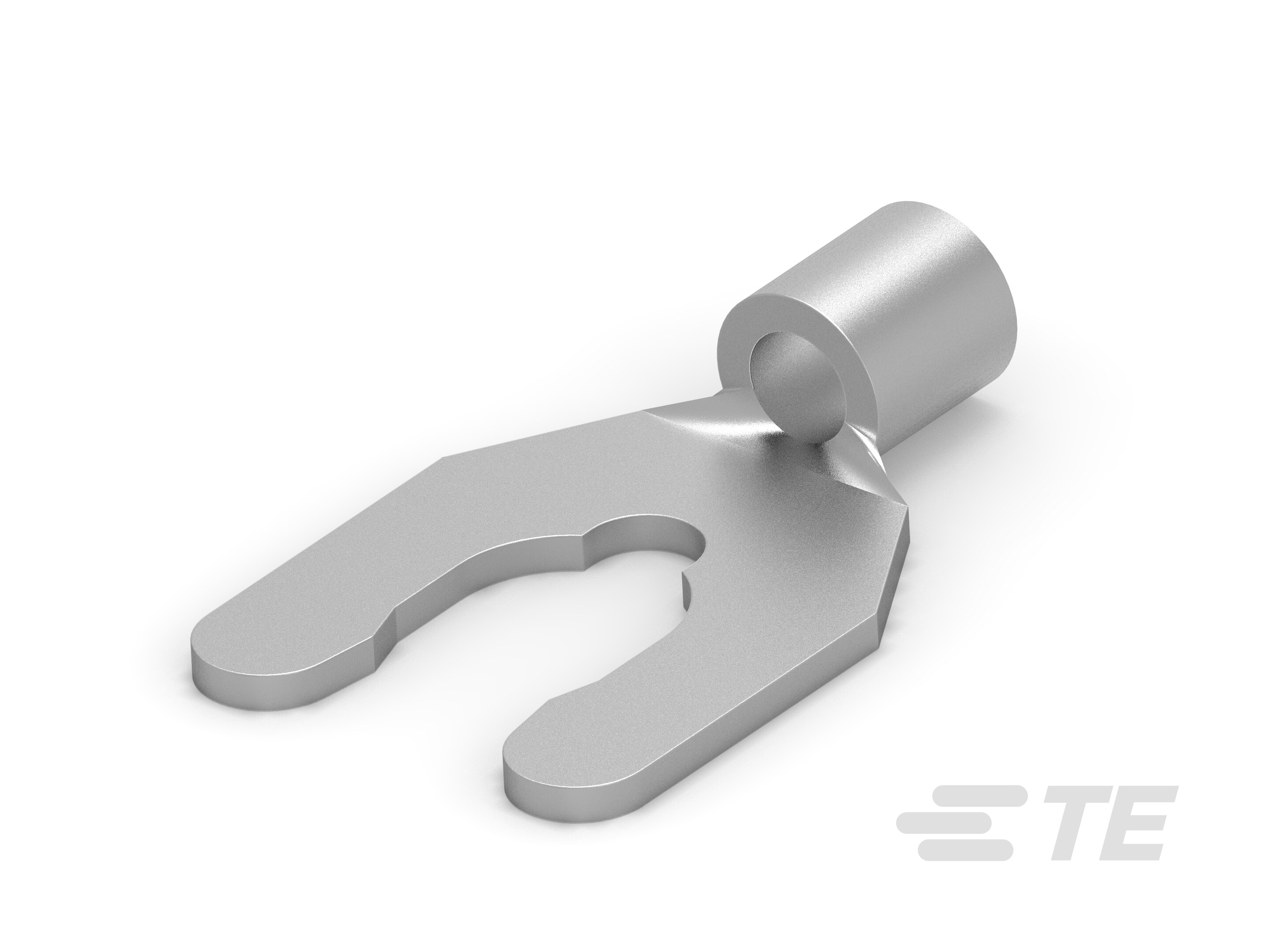

SOLIS SPR SPD 16-14, 10-8-53125-1

8-53125-1

Active
TE Connectivity AMP Connectors

CONN SPADE TERM 14-16AWG #10

Find alt
SOLIS SPR SPD 16-14, 10-8-53125-1

8-53125-1

Active
TE Connectivity AMP Connectors

CONN SPADE TERM 14-16AWG #10

Find alt

Description

General part information

8-53125-1

Spring Spade Terminal, 16 – 14 AWG, #10 Stud, 4.82 mm [.19 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated

Technical Specifications

Parameters and characteristics for this part

Specification8-53125-1
Contact FinishTin
Contact MaterialPhosphor Bronze
FeaturesSerrated Termination, Brazed Seam
InsulationNon-Insulated
Length - Overall0.685 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size10 Stud
Terminal TypeSnap, Spring
TerminationCrimp
Width - Outer Edges0.406 in
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)14 AWG
