MBA02040C1933DCT00
ActiveVishay Dale
MBA/SMA 0204-50 0.5% CT 193K
MBA02040C1933DCT00
ActiveVishay Dale
MBA/SMA 0204-50 0.5% CT 193K
Description
General part information
MBA02040C1933DCT00

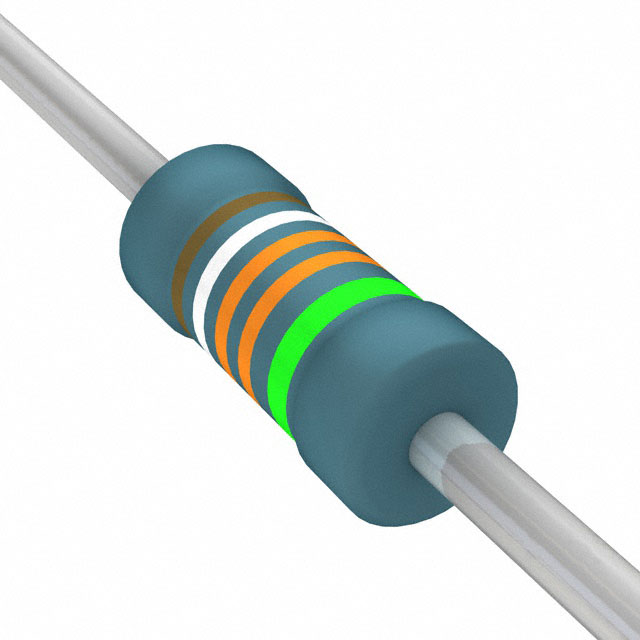

193 kOhms ±0.5% 0.4W Through Hole Resistor Axial Automotive AEC-Q200 Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MBA02040C1933DCT00 |
|---|---|
| Composition | Metal Film |
| Features | Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 0.4 W |
| Resistance | 193 kOhms |
| Size / Dimension Diameter | 0.063 in |
| Size / Dimension Length | 0.142 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 0.5 % |
