MCRL010010R00JHB00
ActiveVishay Dale
RES WIREWOUND 10OHM 5% 50W/100W RADIAL LUG BULK
MCRL010010R00JHB00
ActiveVishay Dale
RES WIREWOUND 10OHM 5% 50W/100W RADIAL LUG BULK
Description
General part information
MCRL010010R00JHB00

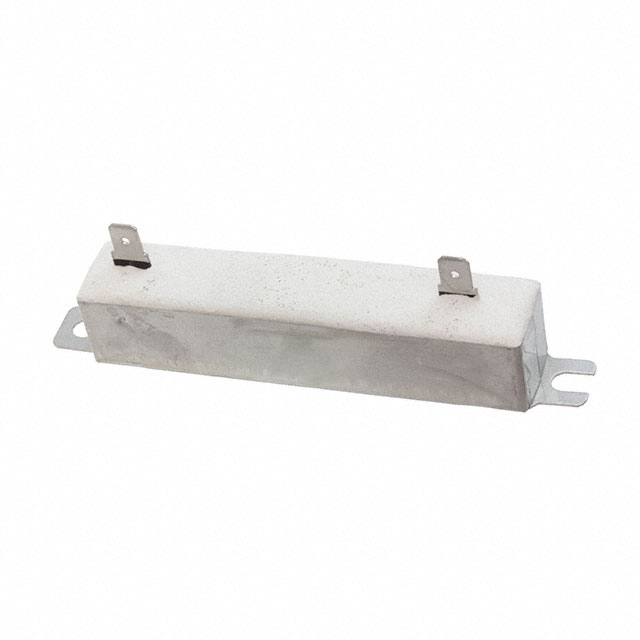

10 Ohms ±5% 100W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | MCRL010010R00JHB00 |
|---|---|
| Composition | Wirewound |
| Features | Safety, Flame Proof |
| Height - Seated (Max) | 0.75 in |
| Lead Style | Quick Connects |
| Lead Style Length | 0.25 in |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 300 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power (Watts) | 100 W |
| Resistance | 10 Ohms |
| Size / Dimension Length | 4.563 in |
| Size / Dimension Width | 0.75 in |
| Tolerance | 5 % |
