PE51OM1027
ActivePasternack

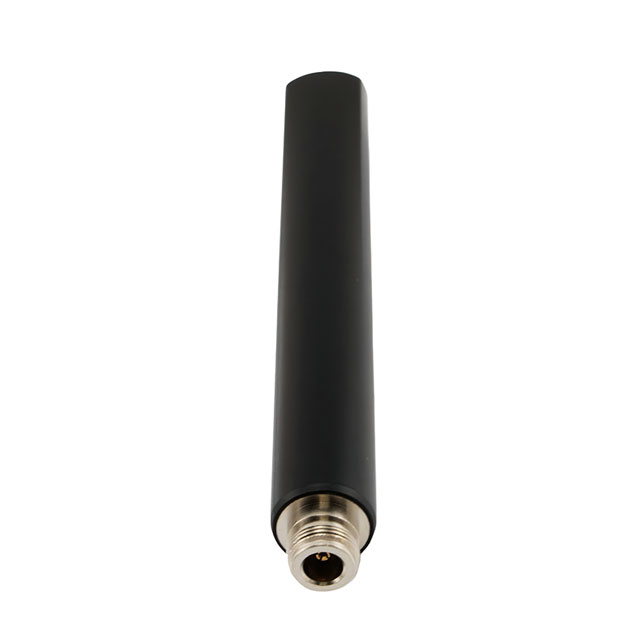

3.5 DBI PTBL BLK OM .6-2.7 GH NF
PE51OM1027
ActivePasternack
3.5 DBI PTBL BLK OM .6-2.7 GH NF
Description
General part information
PE51OM1027
787.5MHz, 2.205GHz 4G, 5G, Bluetooth, loT, Zigbee™, Z-Wave Whip, Straight RF Antenna 615MHz ~ 960MHz, 1.71GHz ~ 2.7GHz 0dBi, 3.5dBi N Type Female Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PE51OM1027 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | Bluetooth, loT, 5G, 4G, Z-Wave, Zigbee™ |
| Frequency (Band) | 2.205 GHz |
| Frequency (Center) | 787.5 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz, 1 GHz |
| Frequency Group Minimum (UHF) | 2 GHz, 300 MHz |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 615 MHz |
| Frequency Range (Band 2) Maximum | 2.7 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 0 dBi, 3.5 dBi |
| Height (Max) | 7.18 in |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| RF Family/Standard | 802.15.4, Cellular, Bluetooth |
| Termination | N Type Female |
| VSWR | 3 |
