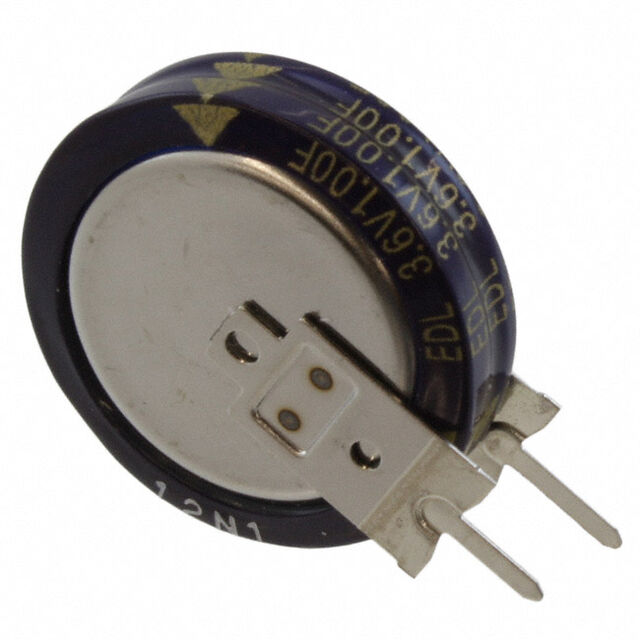

EDLRG105V3R6C
ObsoleteCornell Dubilier Knowles
CAP 1F -20% +80% 3.6V T/H
EDLRG105V3R6C
ObsoleteCornell Dubilier Knowles
CAP 1F -20% +80% 3.6V T/H
Description
General part information
EDLRG105V3R6C
1 F (EDLC) Supercapacitor 3.6 V Radial, Can, Vertical 20Ohm @ 1kHz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | EDLRG105V3R6C |
|---|---|
| Capacitance | 1 F |
| ESR (Equivalent Series Resistance) | 20 Ohm |
| Height - Seated (Max) | 0.827 in |
| Lead Spacing | 0.197 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Vertical, Radial |
| Size / Dimension Diameter | 0.748 in |
| Termination | PC Pins |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 3.6 VDC |
