Description
General part information

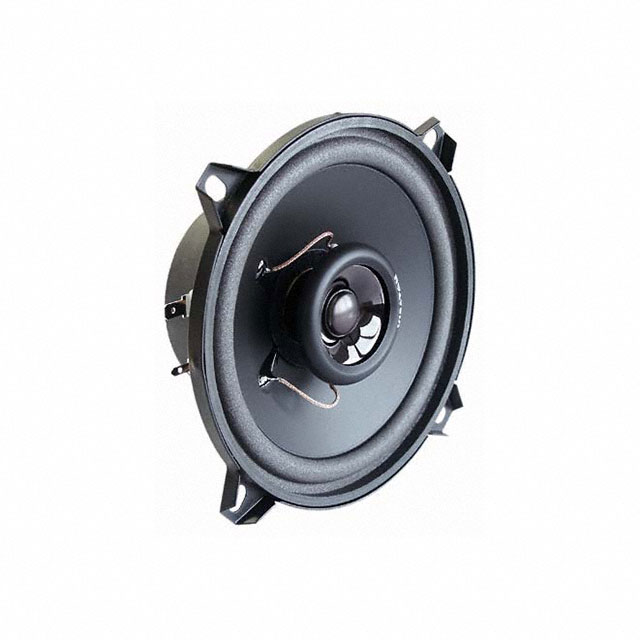

DX 13 - 4 OHM
4 Ohms Full Range Speaker 60 W 70 Hz ~ 20 kHz Top Round, Square Frame
Technical Specifications
Parameters and characteristics for this part
| Specification | DX 13 - 4 OHM |
|---|---|
| Efficiency - dBA | 86 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 90 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 70 Hz |
| Height - Seated (Max) | 2.205 in |
| Impedance | 4 Ohms |
| Material - Cone | Polypropylene (PP) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Port Location | Top |
| Power - Max | 80 W |
| Power - Rated | 60 W |
| Shape | Round, Square Frame |
| Technology | Magnetic |
| Termination | Quick Connect |
| Type | Full Range |
