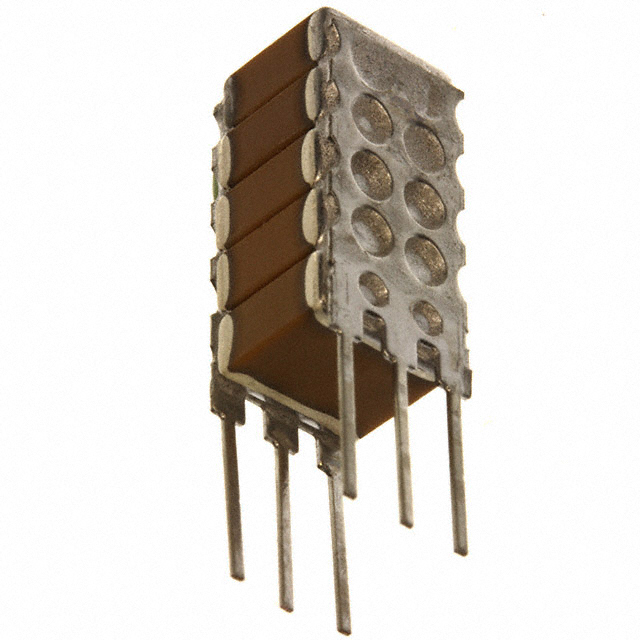

Specification	SMX51C205KAN650

Applications	SMPS Filtering
Capacitance	2 µF
Features	High Temperature, Low ESL (Stacked)
Height - Seated (Max)	0.25 in
Lead Spacing	0.25 in
Mounting Type	Through Hole
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-55 °C
Package Leads	6 Leads
Package Name	Stacked DIP
Size / Dimension Length	0.25 in
Size / Dimension Width	0.3 in
Temperature Coefficient	X7R (VHT)
Tolerance	10 %
Voltage - Rated	100 VAC/DC
