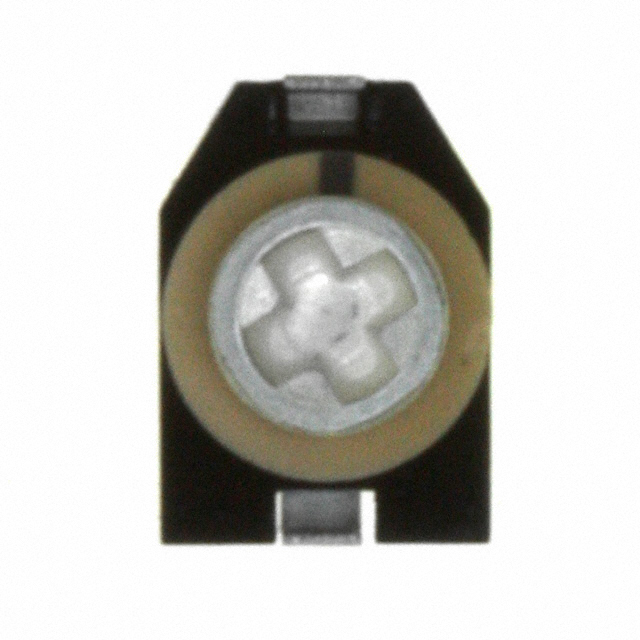

CTZ3E-05A-W1-PF
ObsoleteKYOCERA AVX
CAP TRIMMER 1.5-5PF 25V SMD
CTZ3E-05A-W1-PF
ObsoleteKYOCERA AVX
CAP TRIMMER 1.5-5PF 25V SMD
Description
General part information
CTZ3E-05A-W1-PF
1.5 ~ 5pF Trimmer Capacitor 25 V Top Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CTZ3E-05A-W1-PF |
|---|---|
| Adjustment Type | Top |
| Capacitance Range (Max) | 5 pF |
| Capacitance Range (Min) | 1.5 pF |
| Dielectric Material | Ceramic |
| Features | Low Profile |
| Height - Seated (Max) | 0.071 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Q | 300 |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.126 in |
| Voltage - Rated | 25 VAC |
