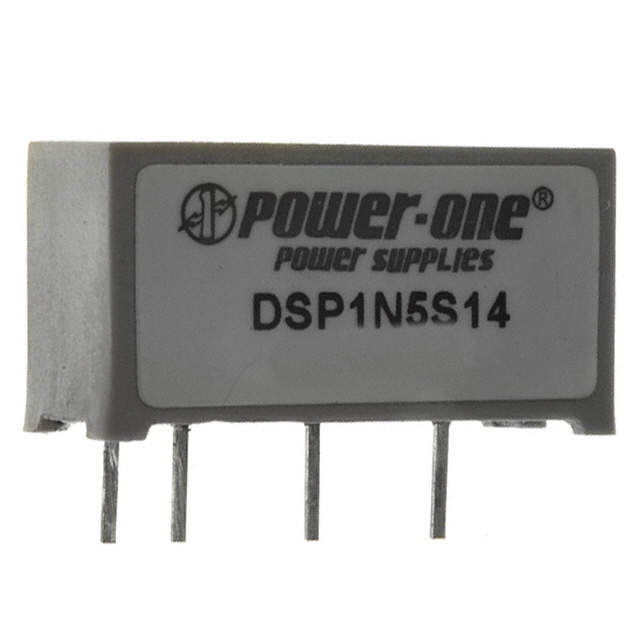

DSP1N5S14
ObsoleteBel Fuse Inc.
DC DC CONVERTER 14V 1W
DSP1N5S14
ObsoleteBel Fuse Inc.
DC DC CONVERTER 14V 1W
Description
General part information
DSP1N5S14
Isolated Module DC DC Converter 1 Output 14V 70mA 4.5V - 5.5V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | DSP1N5S14 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 70 mA |
| Efficiency | 73 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SIP Module |
| Power (Watts) | 1 W |
| Size / Dimension Height | 0.4 in |
| Size / Dimension Length | 0.77 in |
| Size / Dimension Width | 0.27 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 5.5 V |
| Voltage - Input (Min) | 4.5 V |
| Voltage - Isolation | 700 V |
| Voltage - Output 1 | 14 V |
