UTSX014E15SX
ActiveAmphenol Aerospace Operations

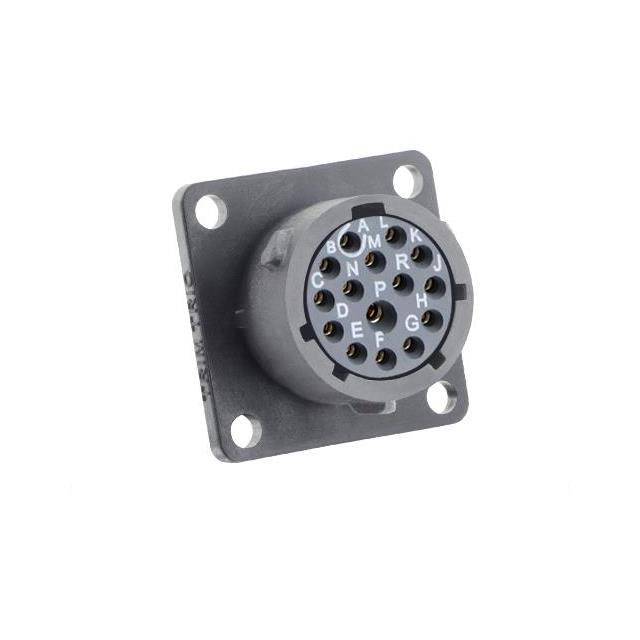

SQUARE FLANGE RECEPTACLE, WITHOU
UTSX014E15SX
ActiveAmphenol Aerospace Operations
SQUARE FLANGE RECEPTACLE, WITHOU
Description
General part information
UTSX014E15SX
15 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX014E15SX |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating Options | 12A, 5A |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | Neoprene |
| Material Flammability Rating | UL94 HB |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 15 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | X |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert (Maximum) | 15 |
| Shell Size - Insert (Minimum) | 14 S |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 250 V, 600 V |
