NB-PTCO-142
ActiveTE Connectivity AMP Connectors

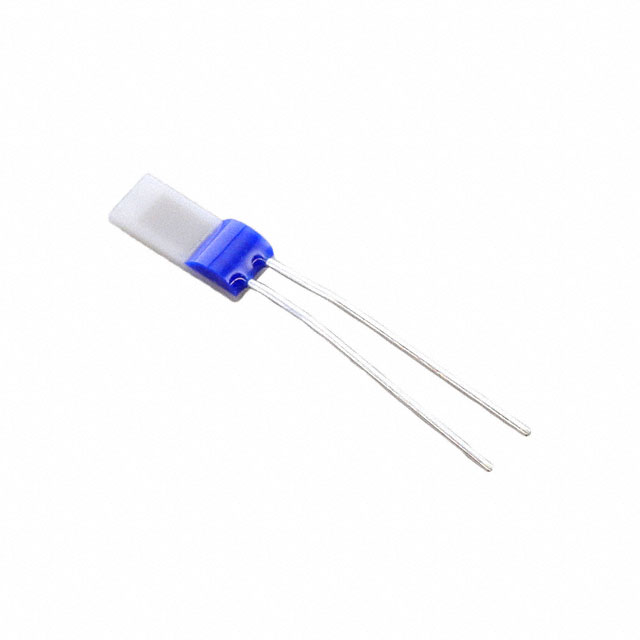

RTD SENSOR, PTFM TYPE, 1.2 X 4 MM, COMPONENT WITH LEADS, CLASS A, -30 °C, 300 °C, 100 OHM, PLATINUM
NB-PTCO-142
ActiveTE Connectivity AMP Connectors
RTD SENSOR, PTFM TYPE, 1.2 X 4 MM, COMPONENT WITH LEADS, CLASS A, -30 °C, 300 °C, 100 OHM, PLATINUM
Description
General part information
MEAS PTF Series
100 Ohms RTD Platinum (Pt) ±0.001% 3850ppm/°C 2-SIP
Technical Specifications
Parameters and characteristics for this part
| Specification | NB-PTCO-142 |
|---|---|
| Accuracy | 0.15 °C |
| Current | 1.4 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 300 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 2-SIP |
| Resistance | 100 Ohms |
| Resistance Tolerance (%) | 0.06 % |
| RTD Material | Platinum (Pt) |
| Temperature Coefficient | 3850 ppm/°C |
| Termination | PC Pins |
