ZWS15-12
ObsoleteTDK Corporation
AC/DC CONVERTER 12V 15W
ZWS15-12
ObsoleteTDK Corporation
AC/DC CONVERTER 12V 15W
Description
General part information
ZWS15-12

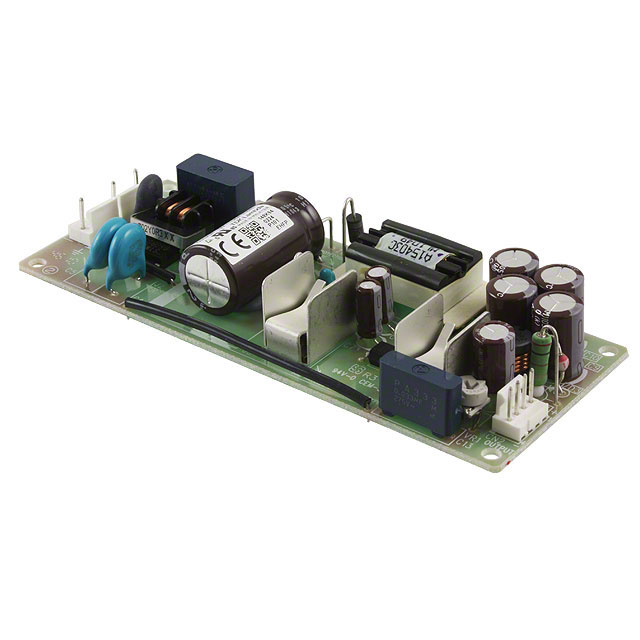

Open Frame AC DC Converters 1 Output 12V 85 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ZWS15-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, TUV, CE |
| Current - Output 1 | 1.25 A |
| Efficiency | 71 % |
| Features | PFC, Adjustable Output, Load Sharing, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.83 in |
| Size / Dimension Length | 4.93 in |
| Size / Dimension Width | 1.97 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 12 V |
