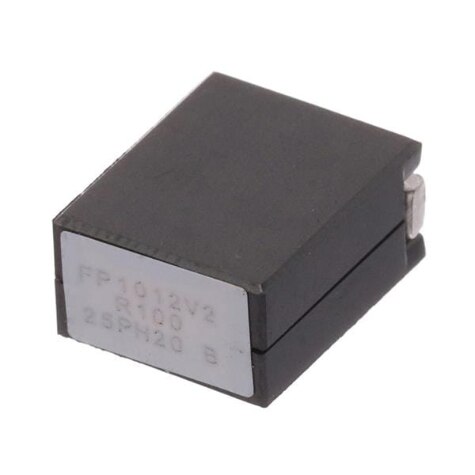

FP1012V2-R100-R
ActiveEaton - Electronics Division
POWER INDUCTORS - SMD IND FLAT PAC, 100NH, 125A,2 PADS, SMT
FP1012V2-R100-R
ActiveEaton - Electronics Division
POWER INDUCTORS - SMD IND FLAT PAC, 100NH, 125A,2 PADS, SMT
Description
General part information
FP1012V2-R100-R
POWER INDUCTORS - SMD IND FLAT PAC, 100NH, 125A,2 PADS, SMT
Technical Specifications
Parameters and characteristics for this part
| Specification | FP1012V2-R100-R |
|---|---|
| Current - Saturation (Isat) | 125 A |
| Current Rating | 84 A |
| DC Resistance (DCR) (Max) | 138 mOhm |
| Height - Seated (Max) | 0.472 in |
| Inductance | 100 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.236 in |
| Tolerance | 10 % |
