PBC20SFBN

Active

Sullins Connector Solutions

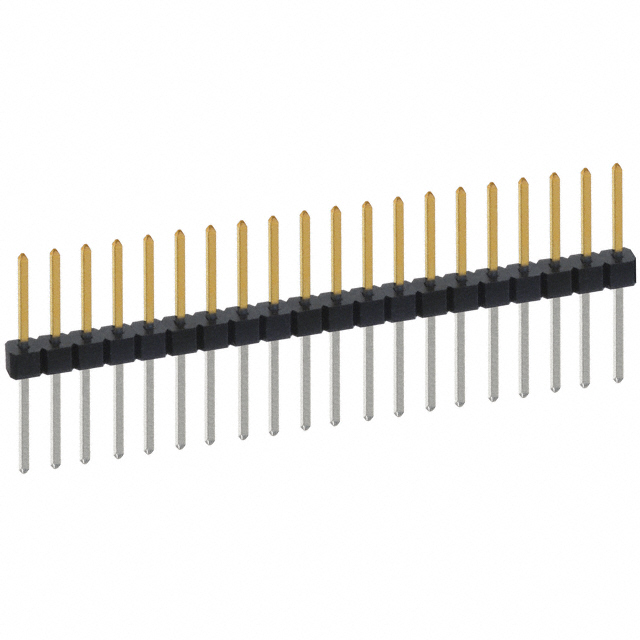

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC20SFBN

Active

Sullins Connector Solutions

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC20SFBN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	16.21 mm
Overall Contact Length	0.638 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC20 Series

Part	Termination	Shrouding	Fastening Type	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Contact Length - Mating [x]	Connector Type	Material Flammability Rating	Insulation Height	Insulation Height	Number of Rows	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Material	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Shape	Contact Type	Insulation Material	Number of Positions Loaded	Contact Finish - Mating	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating
Sullins Connector Solutions PBC20SFDN	Solder	Unshrouded	Push-Pull	Through Hole	10.67 mm	0.42 in	0.318 "	8.08 mm	Breakaway Header	UL94 V-0	0.1 in	2.54 mm	1	3 A	0.1 in	2.54 mm	20	Phosphor Bronze	21.29 mm	0.838 in	2.54 µm	100 µin	125 °C	-65 ░C	Black	Square	Male Pin	Polybutylene Terephthalate (PBT)	All	Gold	Board to Board Cable	10 çin	0.25 çm	Tin
Sullins Connector Solutions PBC20SGAN	Solder	Unshrouded	Push-Pull	Through Hole Right Angle			0.318 "	8.08 mm	Breakaway Header	UL94 V-0	0.14 in	3.56 mm	1	3 A	0.1 in	2.54 mm	20	Phosphor Bronze			2.54 µm	100 µin	125 °C	-65 ░C	Black	Square	Male Pin	Polybutylene Terephthalate (PBT)	All	Gold	Board to Board Cable	10 çin	0.25 çm	Tin	2.54 mm	0.1 in
Sullins Connector Solutions PBC20DGAN	Solder	Unshrouded	Push-Pull	Through Hole Right Angle			0.318 "	8.08 mm	Breakaway Header	UL94 V-0	0.24 in	6.1 mm	2	3 A	0.1 in	2.54 mm	40	Phosphor Bronze			2.54 µm	100 µin	125 °C	-65 ░C	Black	Square	Male Pin	Polybutylene Terephthalate (PBT)	All	Gold	Board to Board Cable	10 çin	0.25 çm	Tin	2.54 mm	0.1 in	2.54 mm	0.1 in
Sullins Connector Solutions PBC20DFCN	Solder	Unshrouded	Push-Pull	Through Hole	8.13 mm	0.32 in	0.318 "	8.08 mm	Breakaway Header	UL94 V-0	0.1 in	2.54 mm	2	3 A	0.1 in	2.54 mm	40	Phosphor Bronze	18.75 mm	0.738 "	2.54 µm	100 µin	125 °C	-65 ░C	Black	Square	Male Pin	Polybutylene Terephthalate (PBT)	All	Gold	Board to Board Cable	10 çin	0.25 çm	Tin			2.54 mm	0.1 in
Sullins Connector Solutions PBC20SBBN	Solder	Unshrouded	Push-Pull	Through Hole Right Angle	5.08 mm	0.2 in	0.23 in		Breakaway Header	UL94 V-0	0.14 in	3.56 mm	1	3 A	0.1 in	2.54 mm	20	Phosphor Bronze			2.54 µm	100 µin	125 °C	-65 ░C	Black	Square	Male Pin	Polybutylene Terephthalate (PBT)	All	Gold	Board to Board Cable	10 çin	0.25 çm	Tin					5.84 mm
Sullins Connector Solutions PBC20DAFN	Solder	Unshrouded	Push-Pull	Through Hole			0.23 in		Breakaway Header	UL94 V-0	0.1 in	2.54 mm	2	3 A	0.1 in	2.54 mm	40	Phosphor Bronze	24.13 mm	0.95 in	2.54 µm	100 µin	125 °C	-65 ░C	Black	Square	Male Pin	Polybutylene Terephthalate (PBT)	All	Gold	Board to Board Cable	10 çin	0.25 çm	Tin	15.75 mm	0.62 in	2.54 mm	0.1 in	5.84 mm
Sullins Connector Solutions PBC20SFBN	Solder	Unshrouded	Push-Pull	Through Hole			0.318 "	8.08 mm	Breakaway Header	UL94 V-0	0.1 in	2.54 mm	1	3 A	0.1 in	2.54 mm	20	Phosphor Bronze	16.21 mm	0.638 in	2.54 µm	100 µin	125 °C	-65 ░C	Black	Square	Male Pin	Polybutylene Terephthalate (PBT)	All	Gold	Board to Board Cable	10 çin	0.25 çm	Tin	5.58 mm	0.22 in
Sullins Connector Solutions PBC20SFCN	Solder	Unshrouded	Push-Pull	Through Hole	8.13 mm	0.32 in	0.318 "	8.08 mm	Breakaway Header	UL94 V-0	0.1 in	2.54 mm	1	3 A	0.1 in	2.54 mm	20	Phosphor Bronze	18.75 mm	0.738 "	2.54 µm	100 µin	125 °C	-65 ░C	Black	Square	Male Pin	Polybutylene Terephthalate (PBT)	All	Gold	Board to Board Cable	10 çin	0.25 çm	Tin
Sullins Connector Solutions PBC20SAGN	Solder	Unshrouded	Push-Pull	Through Hole	18.29 mm	0.72 "	0.23 in		Breakaway Header	UL94 V-0	0.1 in	2.54 mm	1	3 A	0.1 in	2.54 mm	20	Phosphor Bronze	26.67 mm	1.05 in	2.54 µm	100 µin	125 °C	-65 ░C	Black	Square	Male Pin	Polybutylene Terephthalate (PBT)	All	Gold	Board to Board Cable	10 çin	0.25 çm	Tin					5.84 mm
Sullins Connector Solutions PBC20DADN	Solder	Unshrouded	Push-Pull	Through Hole	10.67 mm	0.42 in	0.23 in		Breakaway Header	UL94 V-0	0.1 in	2.54 mm	2	3 A	0.1 in	2.54 mm	40	Phosphor Bronze	19.05 mm	0.75 in	2.54 µm	100 µin	125 °C	-65 ░C	Black	Square	Male Pin	Polybutylene Terephthalate (PBT)	All	Gold	Board to Board Cable	10 çin	0.25 çm	Tin			2.54 mm	0.1 in	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.91
		10	$ 1.66
		100	$ 1.48
		500	$ 1.24
		1000	$ 1.06
		5000	$ 1.01

Description

General part information

PBC20 Series

Connector Header Through Hole 20 position 0.100" (2.54mm)
