0308 12
ActiveLumberg Inc

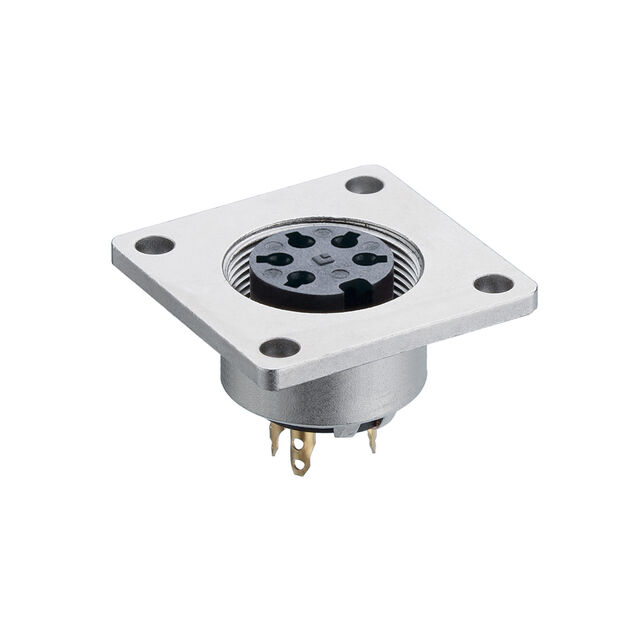

CIRCULAR CONNECTOR, 0308 SERIES, FLANGE MOUNT PLUG, 12 CONTACTS, SOLDER SOCKET, THREADED
0308 12
ActiveLumberg Inc
CIRCULAR CONNECTOR, 0308 SERIES, FLANGE MOUNT PLUG, 12 CONTACTS, SOLDER SOCKET, THREADED
Description
General part information
0308 12
12 Position Circular Connector Plug, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 0308 12 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver, Gold |
| Fastening Type | Threaded |
| Ingress Protection | IP68 |
| Material Flammability Rating | UL94 |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 12 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M16 |
| Termination | Solder |
