76000964
ObsoleteDigi International
AC/DC WALL MOUNT ADAPTER 5V 30W
76000964
ObsoleteDigi International
AC/DC WALL MOUNT ADAPTER 5V 30W
Description
General part information
76000964

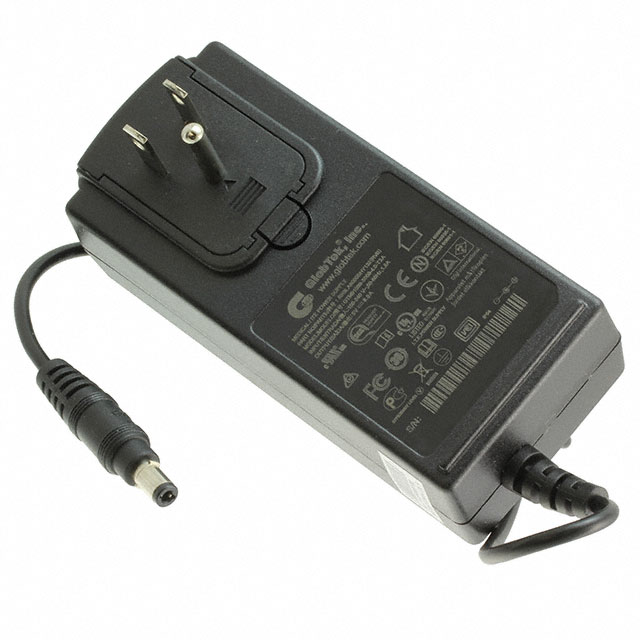

5V 30 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 76000964 |
|---|---|
| Approval Agency | UL, CE, cUL |
| Cord Length | 60 in |
| Current - Output (Max) | 6 A |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector I.D. | 2.5 mm |
| Output Connector Length | 9.5 mm |
| Output Connector O.D. | 5.5 mm |
| Power (Watts) | 30 W |
| Region Utilized | North America |
| Size / Dimension Height | 1.46 in |
| Size / Dimension Length | 4.65 in |
| Size / Dimension Width | 2.13 in |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 5 VDC |
