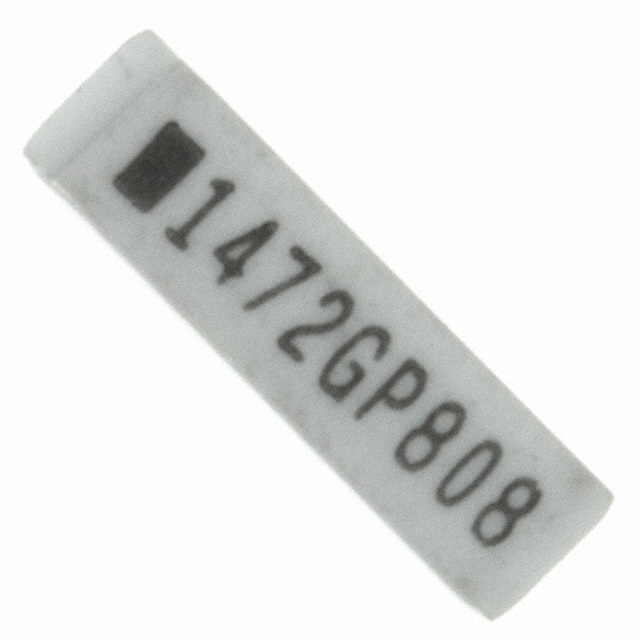

753101472GPTR7
ActiveCTS Resistor Products
RES ARRAY 9 RES 4.7K OHM 10SRT
753101472GPTR7
ActiveCTS Resistor Products
RES ARRAY 9 RES 4.7K OHM 10SRT
Description
General part information
753101472GPTR7
4.7k Ohm ±2% 40mW Power Per Element Bussed 9 Resistor Network/Array ±200ppm/°C 10-SRT
Technical Specifications
Parameters and characteristics for this part
| Specification | 753101472GPTR7 |
|---|---|
| Circuit Type | Bussed |
| Height - Seated (Max) | 0.1 in |
| Mounting Type | Surface Mount |
| Number of Pins | 10 |
| Number of Resistors | 9 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 10-SRT |
| Power Per Element | 40 mW |
| Resistance | 4.7 kOhm |
| Size / Dimension Length | 0.295 in |
| Size / Dimension Width | 0.08 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 2 % |
