1861196
ActivePhoenix Contact
TERM BLK 6POS GREEN
1861196
ActivePhoenix Contact
TERM BLK 6POS GREEN
Description
General part information
1861196

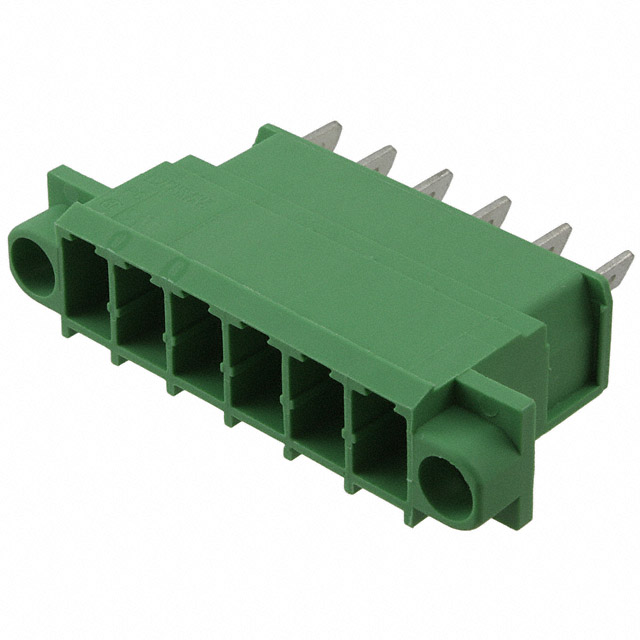

6 Position Terminal Block Header, Male Pins Green
Technical Specifications
Parameters and characteristics for this part
| Specification | 1861196 |
|---|---|
| Color | Green |
| Current - UL | 20 A |
| Features | Threaded Mating Lock |
| Front Panel Wire Connection (Method) | Header, Male Pins |
| Number of Levels | 1 |
| Panel Mount Type | Screw Mount - Front Flange |
| Panel Thickness (Max) | 0.197 in |
| Panel Thickness (Min) | 0.039 in |
| Pitch | 0.3 in |
| Positions Per Level | 6 |
| Rear Panel Wire Connection | Solder Eyelet, Quick Connect |
| Rear Panel Wire Connection (Quick Connect) Length | 0.187 in |
| Voltage - UL | 300 V |
| Width | 2.399 in |
