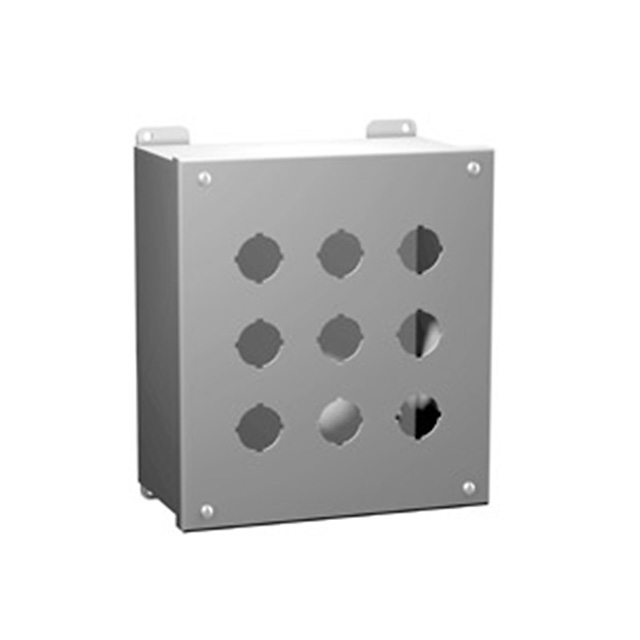

1437MA

Active

Hammond Manufacturing

BOX STEEL GRAY 4"L X 4"W

Deep-Dive with AI

Search across all available documentation for this part.

1437MA

Active

Hammond Manufacturing

BOX STEEL GRAY 4"L X 4"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 79.76
		5	$ 74.45
		10	$ 73.12
		25	$ 71.79
		50	$ 70.72
		100	$ 69.13

Description

General part information

1437 Series

Box Metal, Steel Gray Cover Included 4.000" L x 4.000" W (101.60mm x 101.60mm) X 4.750" (120.65mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1437MA	1437 Series

Area (L x W)	16 in˛	16 - 182 in²
Area (L x W)	103 cm˛	103 - 1174 cm²
Area (L x W)	-	155 cm²
Area (L x W)	-	24 in²
Color	Gray	Gray, Natural
Container Type	Box	Box
Design	Cover Included	Hinged Door, Lid, Cover Included
Features	Pushbutton Holes - 1	Pushbutton Holes - 1
Features	-	9
Features	-	2 - 25 pcs per Pkg
Height [z]	120.65 mm	120.65 mm
Height [z]	4.75 in	4.75 in
Material	Metal, Steel	Metal, Steel
Ratings	UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12	UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12, IP66, NEMA 4X, NEMA 4
Size / Dimension	-	101.6 mm
Size / Dimension [x]	4 in	4 - 14 "
Size / Dimension [x]	101.6 mm	101.6 - 355.6 mm
Size / Dimension [y]	101.6 mm	101.6 - 273.05 mm
Size / Dimension [y]	4 "	4 - 10.75 "
Thickness	16 Gauge	14 - 16 Gauge
Weight	1.4 kg	1.4 - 5.4 kg
Weight	3.1 lbs	3.1 - 12 lbs

1437 Series

BOX STEEL GRAY 9.5"L X 8.5"W

Part	Ratings	Material	Thickness	Color	Weight	Weight	Container Type	Height [z]	Height [z]	Features [custom]	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Design	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]	Features	Features
Hammond Manufacturing 1437MK	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Metal, Steel	14 Gauge	Gray	3.2 kg	7 lbs	Box	120.65 mm	4.75 in	9	80.8 in²	521 cm²	8.5 "	215.9 mm	9.5 "	241.3 mm	Hinged Door, Lid
Hammond Manufacturing 1437B	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Metal, Steel	14 Gauge	Gray	1.8 kg	4 lbs	Box	120.65 mm	4.75 in				4 "		6 in	152.4 mm	Hinged Door, Lid	101.6 mm	155 cm²	24 in²	2 pcs per Pkg
Hammond Manufacturing 1437MX	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Metal, Steel	14 Gauge	Gray	5.4 kg	12 lbs	Box	120.65 mm	4.75 in		182 in²	1174 cm²					Hinged Door, Lid				25
Hammond Manufacturing 1437SSB	IP66, JIC EGP-1-1967, NEMA 4, NEMA 4X, UL-508		14 Gauge	Natural	1.8 kg	4 lbs	Box	120.65 mm	4.75 in				4 "		6 in	152.4 mm	Hinged Door, Lid	101.6 mm	155 cm²	24 in²	2 pcs per Pkg
Hammond Manufacturing 1437MA	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Metal, Steel	16 Gauge	Gray	1.4 kg	3.1 lbs	Box	120.65 mm	4.75 in		16 in˛	103 cm˛	4 "	101.6 mm	4 in	101.6 mm	Cover Included					Pushbutton Holes - 1
Hammond Manufacturing 1437V	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Metal, Steel	14 Gauge	Gray	5 kg	11 lbs	Box	120.65 mm	4.75 in		151 in²	974 cm²	10.75 in	273.05 mm	14 in	355.6 mm	Hinged Door, Lid				20 Positions
Hammond Manufacturing 1437SSS	IP66, JIC EGP-1-1967, NEMA 4, NEMA 4X, UL-508		14 Gauge	Natural	4.5 kg	10 lbs	Box	120.65 mm	4.75 in		126 in²	813 cm²	10.75 in	273.05 mm	11.75 in	298.45 mm	Hinged Door, Lid				16 Switches
Hammond Manufacturing 1437S16D	IP66, JIC EGP-1-1967, NEMA 4, NEMA 4X, UL-508		14 Gauge	Natural	2.3 kg	5 lbs	Box	120.65 mm	4.75 in		40 in²	258 cm²	4 "	101.6 mm	10 in	254 mm	Hinged Door, Lid				4 Cable Entries
Hammond Manufacturing 1437H	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Metal, Steel	14 Gauge	Gray	2.3 kg	5 lbs	Box	120.65 mm	4.75 in		59.4 in²	383 cm²	6.25 "	158.75 mm	9.5 "	241.3 mm	Hinged Door, Lid				6 Fibers
Hammond Manufacturing 1437C	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Metal, Steel	14 Gauge	Gray	2.3 kg	5 lbs	Box	120.65 mm	4.75 in		32 in²	206 cm²	4 "	101.6 mm	8 "	203.2 mm	Hinged Door, Lid
