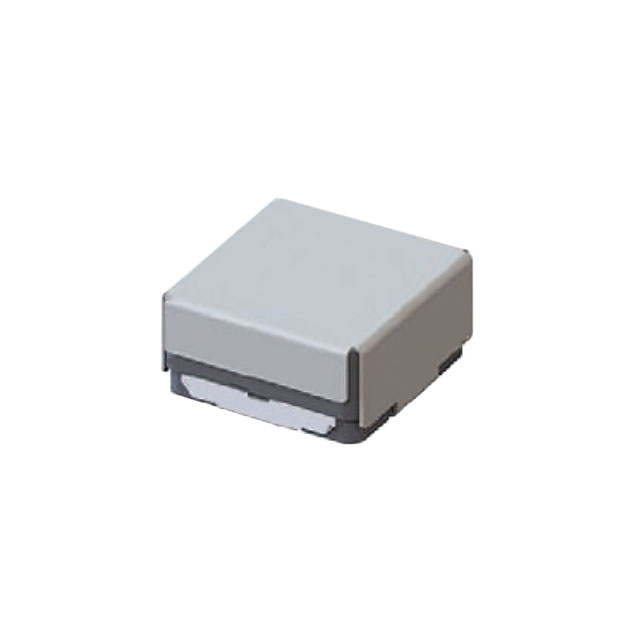

IHLE5050FHER3R3M51
ActiveVishay Dale
INDUCTOR POWER SHIELDED WIREWOUND 3.3UH 20% 100KHZ 20.2A 0.00544OHM DCR 5050 AUTOMOTIVE AEC-Q200 T/R
IHLE5050FHER3R3M51
ActiveVishay Dale
INDUCTOR POWER SHIELDED WIREWOUND 3.3UH 20% 100KHZ 20.2A 0.00544OHM DCR 5050 AUTOMOTIVE AEC-Q200 T/R
Description
General part information
IHLE5050FHER3R3M51
3.3 µH Shielded Wirewound Inductor 20.2 A 5.44mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | IHLE5050FHER3R3M51 |
|---|---|
| Current - Saturation (Isat) | 16.7 A |
| Current Rating | 20.2 A |
| DC Resistance (DCR) (Max) | 5.44 mOhm |
| Frequency - Self Resonant | 17.8 MHz |
| Height - Seated (Max) | 0.268 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.55 in |
| Size / Dimension Width | 0.535 in |
| Tolerance | 20 % |
| Type | Wirewound |
