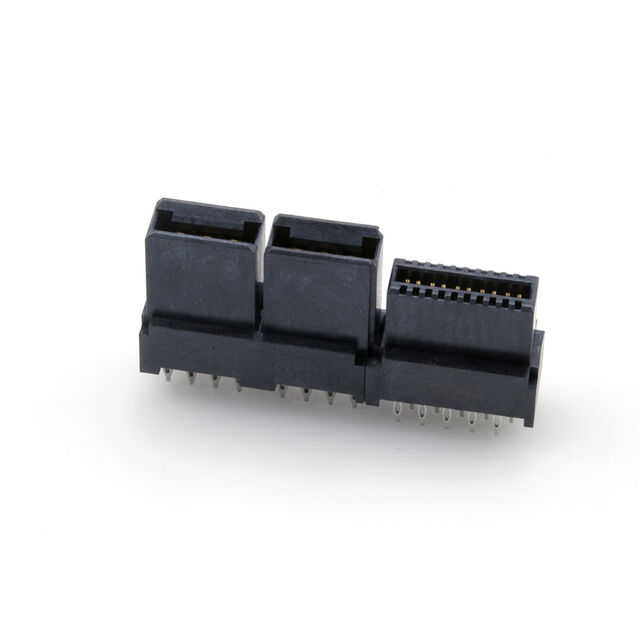

Specification	0461144201

Color	Black
Connector Style	LPHPower
Connector Type	Outer Shroud Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	30 µin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24 pos
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Power Contacts (Typical)	4
Signal Contacts (Typical)	20
Termination	Press-Fit
Voltage Rating	250 V

046114 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Material Flammability Rating	Number of Positions Loaded	Power Contacts (Typical)	Signal Contacts (Typical)	Color	Number of Positions	Connector Style	Contact Finish	Number of Rows	Mounting Type	Termination	Features	Contact Finish Thickness	Connector Type
Molex 0461146120	-40 °C	105 °C	250 V	UL94 V-0	All	6	12	Black	18	LPHPower	Gold	2	Through Hole	Press-Fit	Guide Pin	30 µin	Outer Shroud Contacts Receptacle
Molex 0461141220	-40 °C	105 °C	250 V	UL94 V-0	All	12	20	Black	32	LPHPower	Gold	2	Through Hole	Press-Fit	Guide Pin	30 µin	Outer Shroud Contacts Receptacle
Molex 0461142360	-40 °C	105 °C	250 V	UL94 V-0	All	2	36	Black	38	LPHPower	Gold	2	Through Hole	Press-Fit	Guide Pin	30 µin	Outer Shroud Contacts Receptacle
Molex 0461144401	-40 °C	105 °C	250 V	UL94 V-0	All	4	40	Black	44	LPHPower	Gold	2	Through Hole	Press-Fit		30 µin	Outer Shroud Contacts Receptacle
Molex 0461141025	-40 °C	105 °C	250 V	UL94 V-0	All	10	24	Black	34	LPHPower	Gold	2	Through Hole	Press-Fit		30 µin	Outer Shroud Contacts Receptacle
Molex 0461141012	-40 °C	105 °C	250 V	UL94 V-0	All	10	12	Black	22	LPHPower	Gold	2	Through Hole	Press-Fit	Guide Pin	30 µin	Outer Shroud Contacts Receptacle
Molex 0461141036	-40 °C	105 °C	250 V	UL94 V-0	All	10	36	Black	46	LPHPower	Gold	2	Through Hole	Press-Fit	Guide Pin	30 µin	Outer Shroud Contacts Receptacle
Molex 0461142401	-40 °C	105 °C	250 V	UL94 V-0	All	2	40	Black	42	LPHPower	Gold	2	Through Hole	Press-Fit		30 µin	Outer Shroud Contacts Receptacle
Molex 0461146320	-40 °C	105 °C	250 V	UL94 V-0	All	6	32	Black	38	LPHPower	Gold	2	Through Hole	Press-Fit	Guide Pin	30 µin	Outer Shroud Contacts Receptacle
Molex 0461146241	-40 °C	105 °C	250 V	UL94 V-0	All	6	24	Black	30	LPHPower	Gold	2	Through Hole	Press-Fit		30 µin	Outer Shroud Contacts Receptacle
