Description
General part information
A50021-051

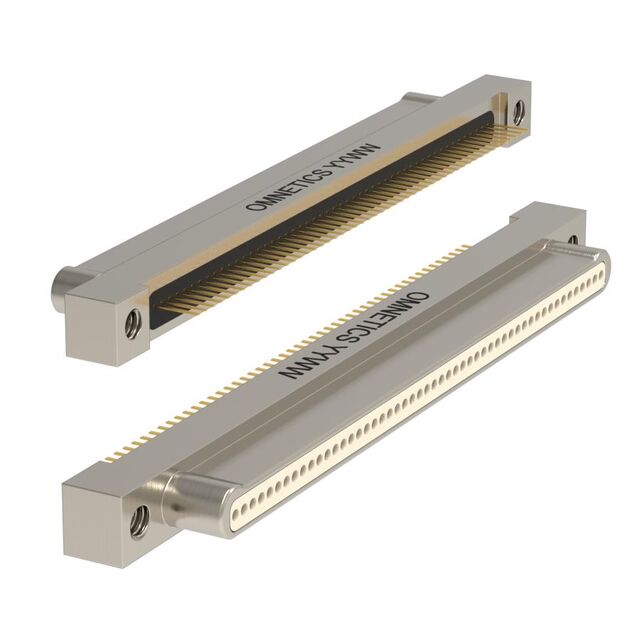

51 Position D-Type, Nano-D Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | A50021-051 |
|---|---|
| Board Side (Flange) Maximum | 80 |
| Board Side (Flange) Minimum | 0 |
| Connector Style | Nano-D, D-Type |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Type | Signal |
| Current Rating | 1 A |
| Finish | Electroless Nickel, Nickel Plated |
| Flange Feature | Board Side, Mating Side |
| Mating Side (Flange) Maximum | 80 |
| Mating Side (Flange) Minimum | 0 |
| Mounting Type | Through Hole |
| Number of Positions | 51 |
| Number of Rows | 1 |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Termination | Solder |
