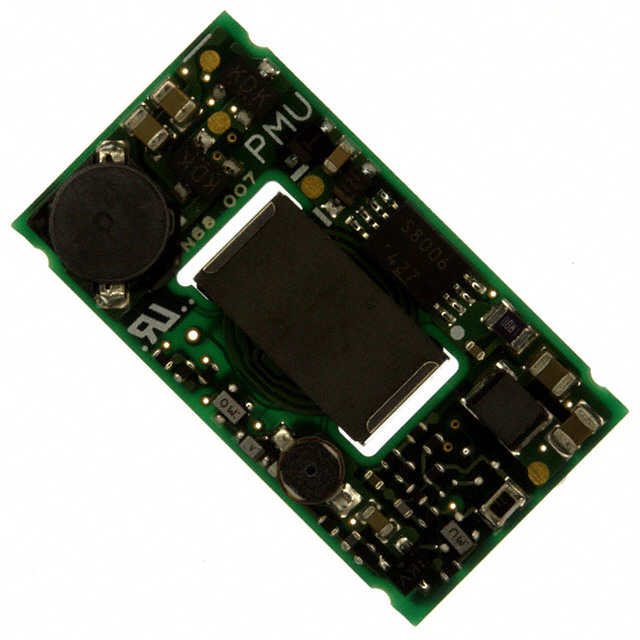

MPD5D016S
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 2.5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPD5D016S
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 2.5V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MPD5D016S | MPD5D Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active Low, Enable | Active Low, Enable |
| Current - Output (Max) [Max] | 1.2 A | 1 - 800 A |
| Efficiency | 80 % | 70 - 85 % |
| Features | OCP, OVP, Remote On/Off | OCP, OVP, Remote On/Off |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 7-SMD Module | 7-SMD Module |
| Power (Watts) | 5 W | 5 W |
| Size / Dimension [x] | 1.06 " | 1.06 " |
| Size / Dimension [x] | 26.8 mm | 26.8 mm |
| Size / Dimension [y] | 14.6 mm | 14.6 mm |
| Size / Dimension [y] | 0.57 in | 0.57 in |
| Size / Dimension [z] | 0.17 in | 0.17 in |
| Size / Dimension [z] | 4.4 mm | 4.4 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | 2.5 V | 1.5 - 5 V |
MPD5D Series
DC DC CONVERTER 2.5V 5W
| Part | Voltage - Input (Min) [Min] | Number of Outputs | Efficiency | Voltage - Output 1 | Features | Type | Control Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Applications | Voltage - Isolation | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Current - Output (Max) [Max] | Power (Watts) | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MPD5D016S | 36 V | 1 | 80 % | 2.5 V | OCP, OVP, Remote On/Off | Isolated Module | Active Low, Enable | 14.6 mm | 1.06 " | 0.17 in | 0.57 in | 26.8 mm | 4.4 mm | ITE (Commercial) | 1.5 kV | Surface Mount | 85 °C | -40 °C | 7-SMD Module | 1.2 A | 5 W | 75 V |
Murata Power Solutions Inc. MPD5D018S | 36 V | 1 | 85 % | 5 V | OCP, OVP, Remote On/Off | Isolated Module | Active Low, Enable | 14.6 mm | 1.06 " | 0.17 in | 0.57 in | 26.8 mm | 4.4 mm | ITE (Commercial) | 1.5 kV | Surface Mount | 85 °C | -40 °C | 7-SMD Module | 1 A | 5 W | 75 V |
Murata Power Solutions Inc. MPD5D013S | 36 V | 1 | 70 % | 1.5 V | OCP, OVP, Remote On/Off | Isolated Module | Active Low, Enable | 14.6 mm | 1.06 " | 0.17 in | 0.57 in | 26.8 mm | 4.4 mm | ITE (Commercial) | 1.5 kV | Surface Mount | 85 °C | -40 °C | 7-SMD Module | 800 mA | 5 W | 75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MPD5D Series
Isolated Module DC DC Converter 1 Output 2.5V 1.2A 36V - 75V Input
