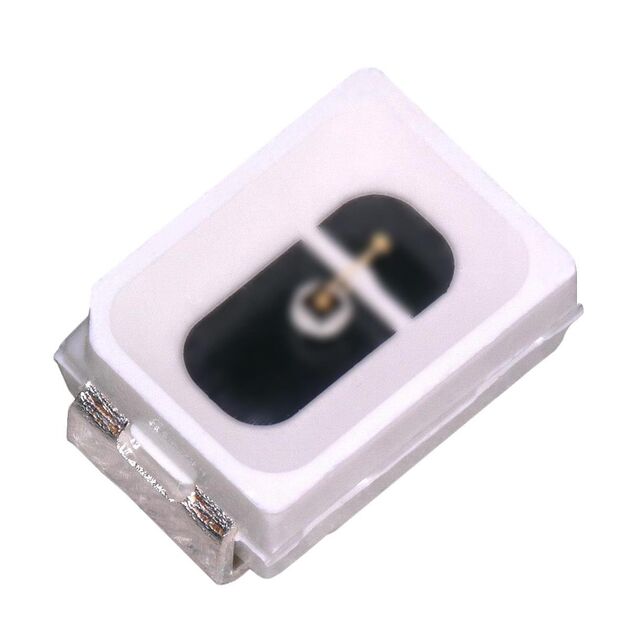

T15B1NG--20C000412U1930
ActiveHarvatek Corporation
LED GREEN CLEAR SMD
T15B1NG--20C000412U1930
ActiveHarvatek Corporation
LED GREEN CLEAR SMD
Description
General part information
T15B1NG--20C000412U1930
Green 525nm LED Indication - Discrete 3.3V 2-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | T15B1NG--20C000412U1930 |
|---|---|
| Color | Green |
| Current - Test | 20 mA |
| Height (Max) | 1.4 mm |
| Lens Length | 2.4 mm |
| Lens Style | Flat Top, Oval |
| Lens Transparency | Clear |
| Lens Width | 1.7 mm |
| Millicandela Rating | 2025 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Package Name | SMD |
| Size / Dimension Length | 2.7 mm |
| Size / Dimension Width | 2 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 518 nm |
