101186503CHCO

Active

Integrated Power Designs

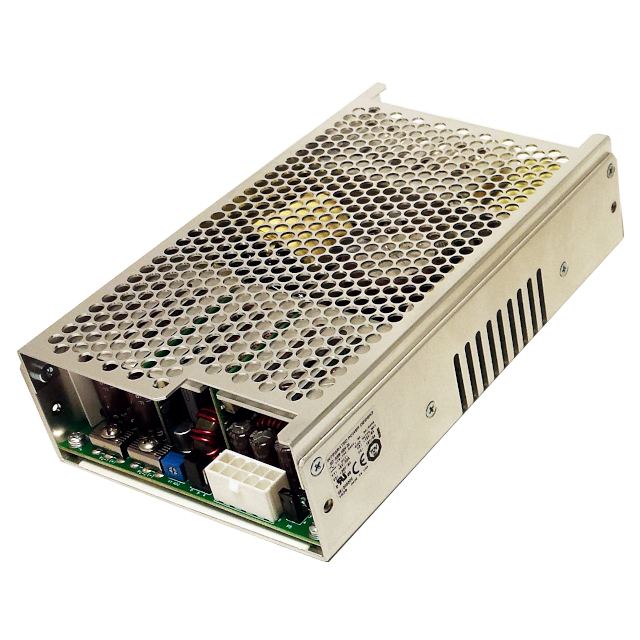

AC/DC CNVRTR +/-24V +/-15V 400W

Search across all available documentation for this part.

Active

Integrated Power Designs

AC/DC CNVRTR +/-24V +/-15V 400W

Technical Specifications

Parameters and characteristics for this part

Specification	101186503CHCO

Applications	ITE (Commercial), Medical
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	12.5 A
Current - Output 2	5 A
Current - Output 3	5 A
Current - Output 4	5 A
Efficiency	87 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	180.3 mm
Size / Dimension [x]	7.1 "
Size / Dimension [y]	106.2 mm
Size / Dimension [y]	4.18 in
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	24 V
Voltage - Output 2	-24 V
Voltage - Output 3	15 V
Voltage - Output 4	-15 V

AC/DC CNVRTR +/-24V +/-15V 400W

Part	Current - Output 4	Efficiency	Voltage - Output 1	Approval Agency	Current - Output 2	Voltage - Output 2	Voltage - Output 4	Number of Outputs	Current - Output 3	Voltage - Output 3	Features	Applications	Standard Number	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Type
Integrated Power Designs 101186503CHCO	5 A	87 %	24 V	CE, cURus, TUV, UKCA	5 A	-24 V	-15 V	4	5 A	15 V	Adjustable Output, Remote Sense, Universal Input	ITE (Commercial), Medical	60601-1, 62368-1	Chassis Mount	240 VAC	100 VAC	106.2 mm	4.18 in	180.3 mm	38 mm	1.5 "	7.1 "	-20 °C	70 °C	12.5 A	Enclosed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 4 Output 24V -24V 15V -15V 100 ~ 240 VAC Input
