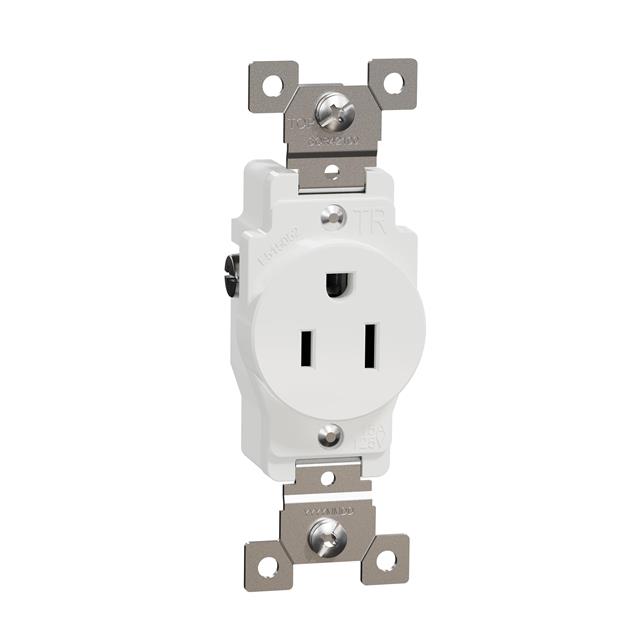

SQR42100WH
ActiveSCHNEIDER ELECTRIC
TR 15A SINGLE OUTLET COMM WH
SQR42100WH
ActiveSCHNEIDER ELECTRIC
TR 15A SINGLE OUTLET COMM WH
Description
General part information
SQR42100WH
Power Connector Receptacle, Female Socket NEMA 5-15R Outlet Box
Technical Specifications
Parameters and characteristics for this part
| Specification | SQR42100WH |
|---|---|
| Approval Agency | UL, cULus |
| Connector Style | NEMA 5-15R |
| Connector Type | Recepture, Female Socket |
| Current Rating | 15 A |
| Features | Tamper Resistant |
| Mounting Type | Outlet Box |
| Number of Positions | 3 |
| Termination | Screw |
| Voltage Rating | 125 V |
