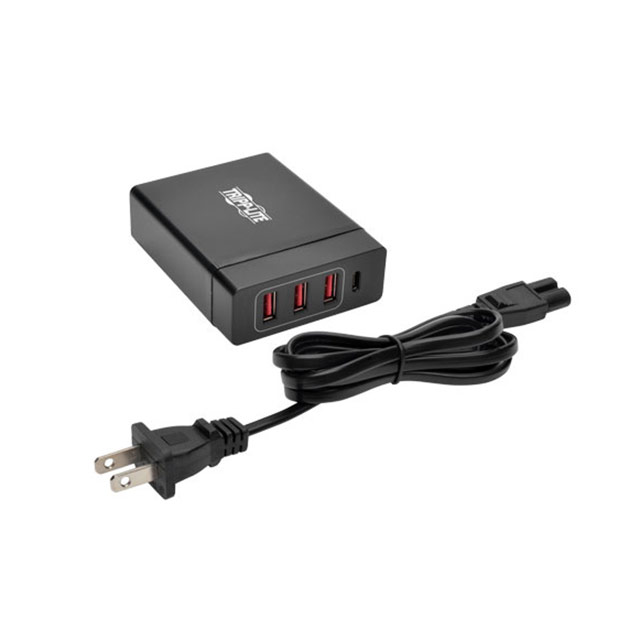

U280-004-WS3C1
ActiveEaton Tripp Lite
BATT CHG USB HUB 5V/12V 2.4A/3A
U280-004-WS3C1
ActiveEaton Tripp Lite
BATT CHG USB HUB 5V/12V 2.4A/3A
Description
General part information
U280-004-WS3C1
USB Charging Hub Battery Charger 5V, 12V 2.4A, 3A
Technical Specifications
Parameters and characteristics for this part
| Specification | U280-004-WS3C1 |
|---|---|
| Approval Agency | UL |
| Battery Chemistry | Mobile Devices |
| Charge Current - Max | 2.4A, 3A |
| Charge Current - Max | 3 A, 2.4 A |
| Mounting Type | Desktop |
| Number of Cells | 4 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Power - Max (Value 1) | 12 W |
| Power - Max (Value 2) | 60 W |
| Size / Dimension Height | 3.6 in |
| Size / Dimension Length | 1.1 in |
| Size / Dimension Width | 3 in |
| Termination Style | USB C Receptacle, USB A Receptacle (3) |
| Type | USB Charging Hub |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Nominal | 5 V, 12 V |
| Weight | 220 g |
