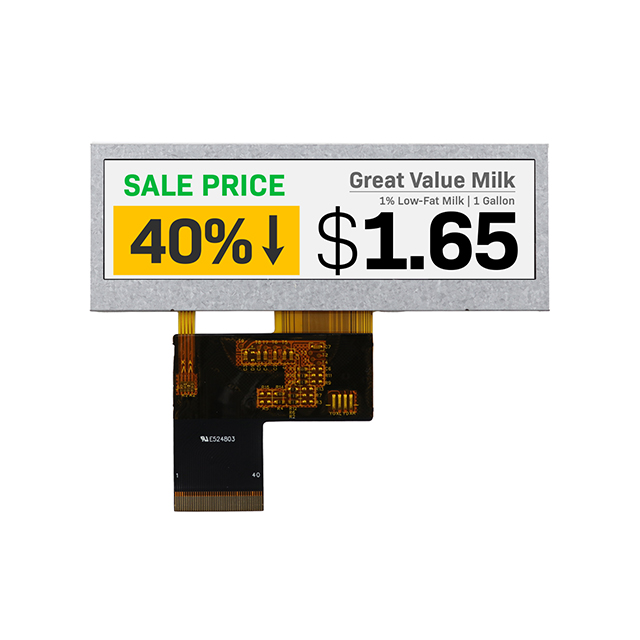

NHD-3.9-480128AF-ASXP
ActiveNewhaven Display Intl
3.9" BAR-TYPE IPS TFT WITH RGB
NHD-3.9-480128AF-ASXP
ActiveNewhaven Display Intl
3.9" BAR-TYPE IPS TFT WITH RGB
Description
General part information
NHD-3.9-480128AF-ASXP
3.9" BAR-TYPE IPS TFT WITH RGB
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-3.9-480128AF-ASXP |
|---|---|
| Background Color | Black |
| Backlight | LED |
| Controller Type | ST7282 |
| Diagonal Screen Size | 3.9 in |
| Display Mode | Transmissive |
| Display Type | IPS (In-Plane Switching), TFT - Color |
| Dot Pixels (Horizontal) | 480 pixels |
| Dot Pixels (Vertical) | 128 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | Parallel |
| Interface Data Width | 24 Bit |
| Touchscreen | Non-Touch |
