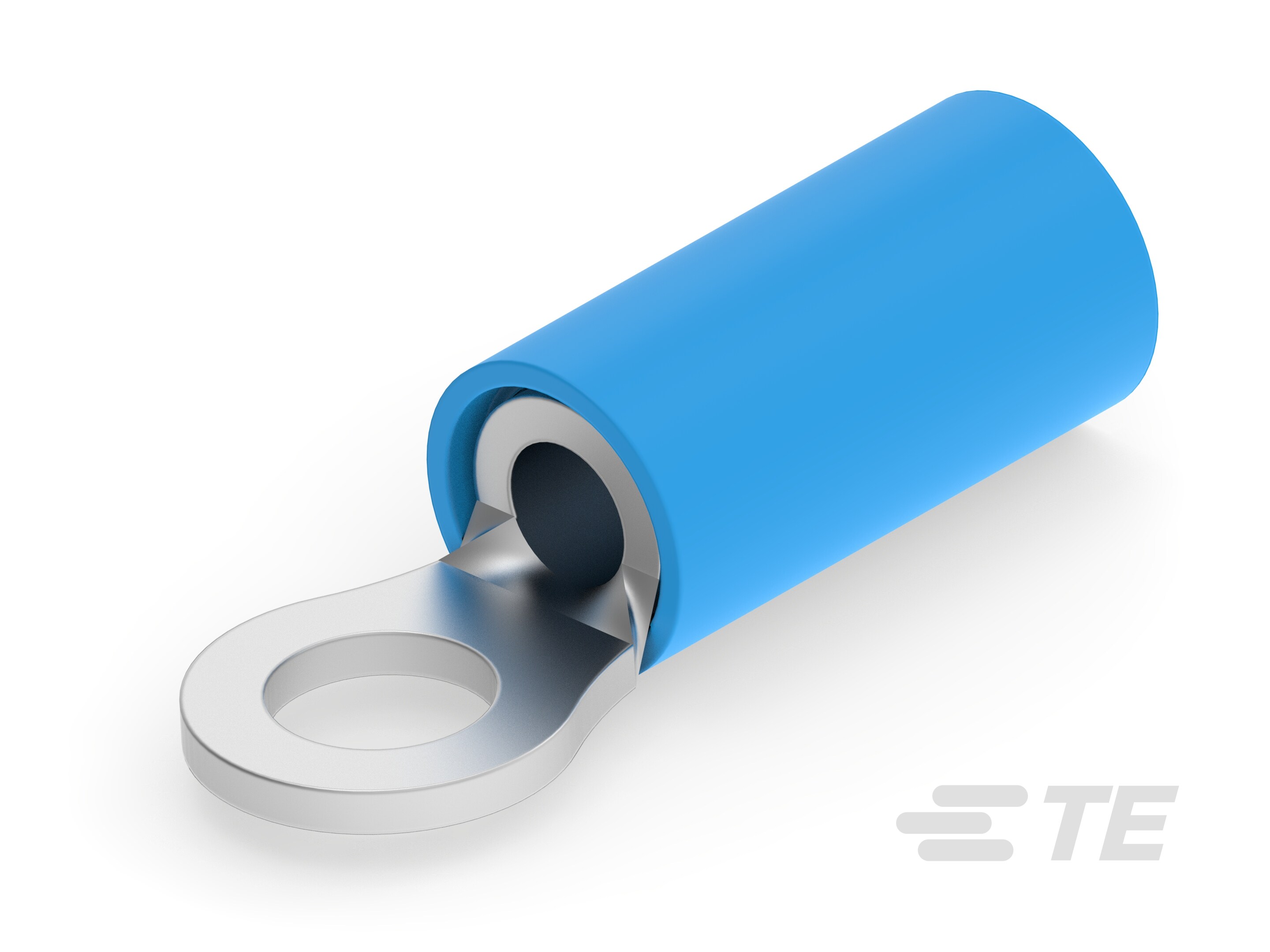

TERMINAL,PIDG R 16-14 6-32442

32442

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG #6 CRIMP

Find alt
TERMINAL,PIDG R 16-14 6-32442

32442

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG #6 CRIMP

Find alt

Description

General part information

32442

Closed Ring Tongue Terminal, 16 – 14 AWG, #6 / M3.5 Stud, 3.7 mm [.146 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification32442
ColorBlue
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Length - Overall0.703 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size6 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.031 in
Width - Outer Edges0.25 in
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)14 AWG
