FERRITE CORE RM 100NH M33 2PCS
B65805C0100A033
ActiveEPCOS - TDK Electronics
FERRITE CORE RM 100NH M33 2PCS
Description
General part information
B65805C0100A033

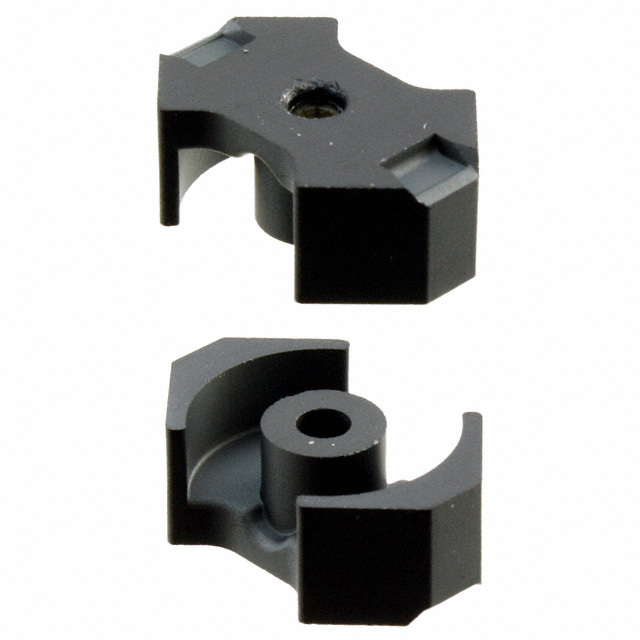

Uncoated M33 Ferrite Core RM Type 0.575" (14.60mm) Length 0.268" (6.80mm) Width Diameter 0.207" (5.25mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | B65805C0100A033 |
|---|---|
| Core Factor (ΣI/A) | 1 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 1 mm⁻¹ |
| Core Type | RM |
| Effective Area (Ae) | 20.8 mm² |
| Effective Length (le) | 20.8 mm |
| Effective Magnetic Volume (Ve) | 433 mm³ |
| Effective Permeability (µe) | 79.6 |
| Finish | Uncoated |
| Gap | Gapped |
| Height | 0.207 in |
| Inductance Factor (Al) | 100 nH |
| Initial Permeability (µi) | 750 |
| Length | 0.575 in |
| Material | M33 |
| Package Name | RM 5 |
| Tolerance | 3 % |
| Width | 0.268 in |
