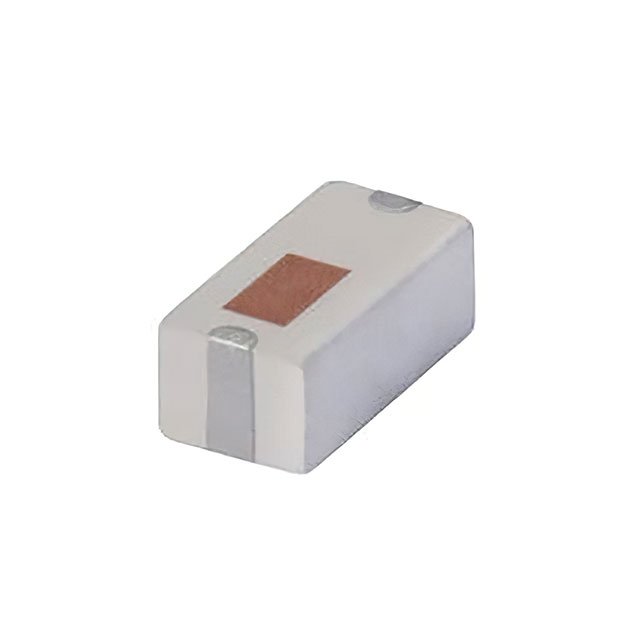

BFCN-5151+
ActiveMini-Circuits
LTCC BAND PASS FILTER, 4120 - 64
BFCN-5151+
ActiveMini-Circuits
LTCC BAND PASS FILTER, 4120 - 64
Description
General part information
BFCN-5151+
5.151GHz Center Band Pass Ceramic Filter 2.32 GHz 50Ohm 1206 (3216 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | BFCN-5151+ |
|---|---|
| Bandwidth | 2.32 GHz |
| Filter Type | Band Pass |
| Frequency (Center) | 5.151 GHz |
| Height (Max) | 0.055 in |
| Impedance | 50 Ohm |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |
| Package Name | 1206 |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
