1742474-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 16.5-18.5AWG TAB
1742474-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 16.5-18.5AWG TAB
Description
General part information
1742474-1

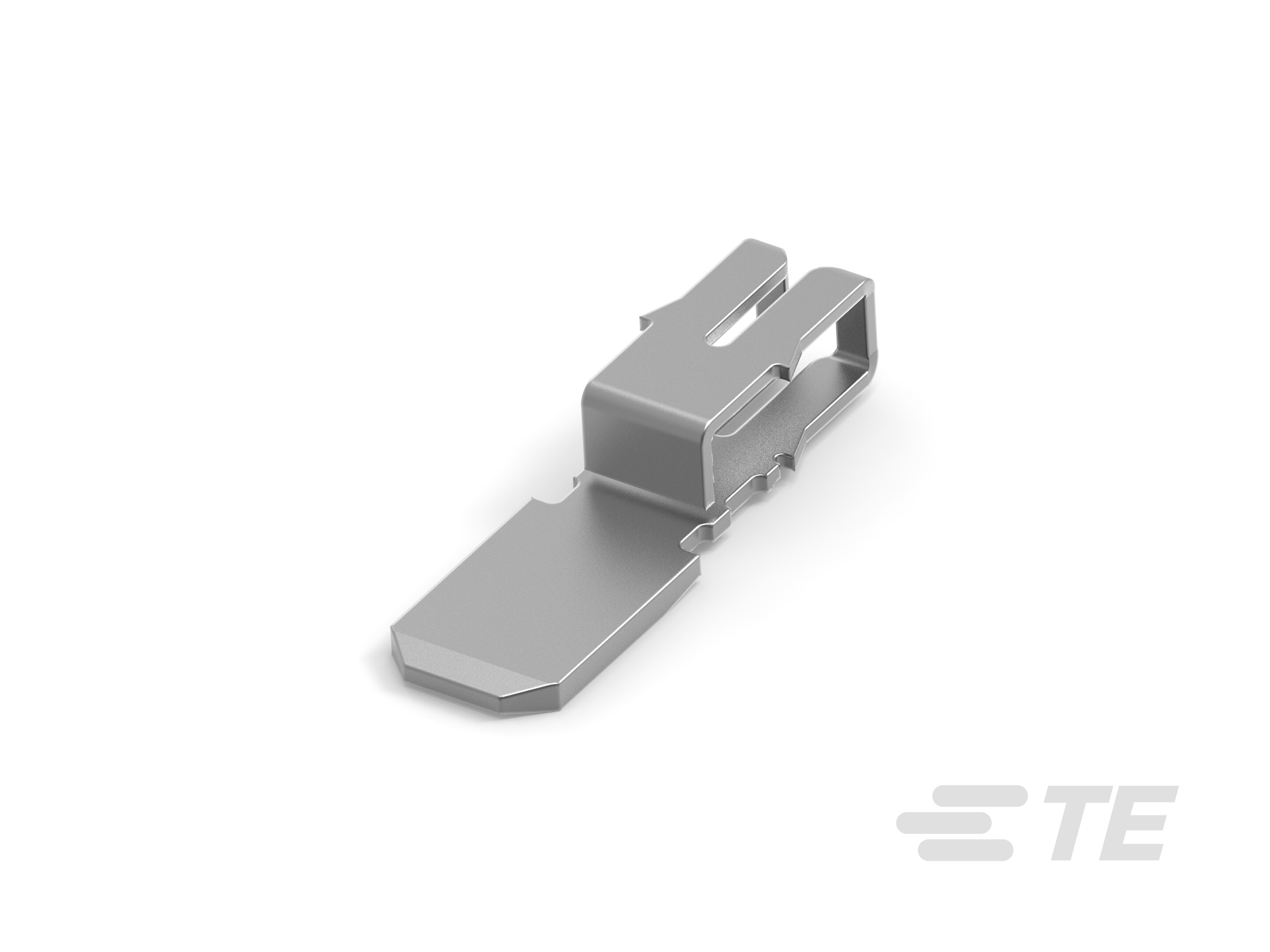

Tab, 4.75 mm [.187 in] Tab Width, .97 – 1.22 mm Magnet Wire, 18.5 – 16.5 AWG Magnet Wire, MAG-MATE, Magnet Wire Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 1742474-1 |
|---|---|
| Features | QC .187 |
| Terminal Type | Tab Terminal |
| Termination | Tab |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
