UTSX614E18P
ActiveAmphenol Aerospace Operations
PLUG, WITHOUT BACKSHELL, WITH 18
UTSX614E18P
ActiveAmphenol Aerospace Operations
PLUG, WITHOUT BACKSHELL, WITH 18
Description
General part information
UTSX614E18P

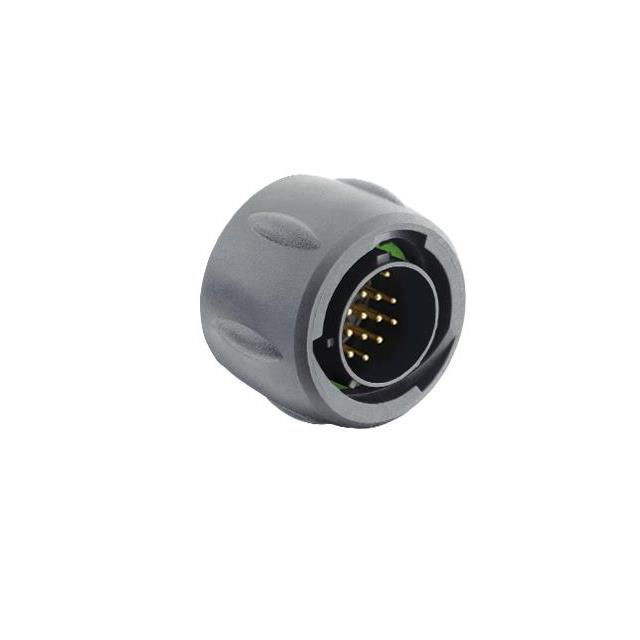

18 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX614E18P |
|---|---|
| Color | Black |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating | 4 A |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant, Coupling Nut |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | Neoprene |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 18 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert (Maximum) | 18 |
| Shell Size - Insert (Minimum) | 14 S |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 250 V |
