B57351V2103J60
ActiveEPCOS - TDK Electronics

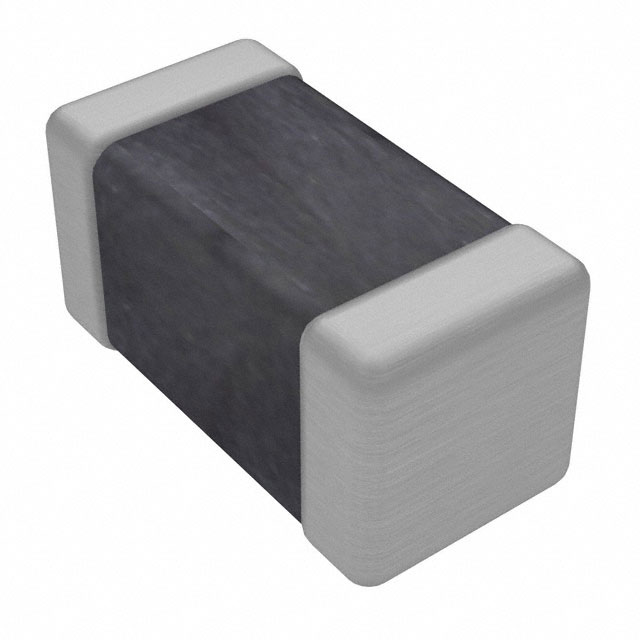

THERMISTOR NTC 10KOHM 3380K 0603
B57351V2103J60
ActiveEPCOS - TDK Electronics
THERMISTOR NTC 10KOHM 3380K 0603
Description
General part information
B57351V2103J60
NTC Thermistor 10k 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | B57351V2103J60 |
|---|---|
| B Value (25/85) | 3435 K |
| B Value Tolerance | 1 % |
| B25/50 | 3380 K |
| Beta (B25/100) | 3455 K |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Power - Max | 180 mW |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 5 % |
