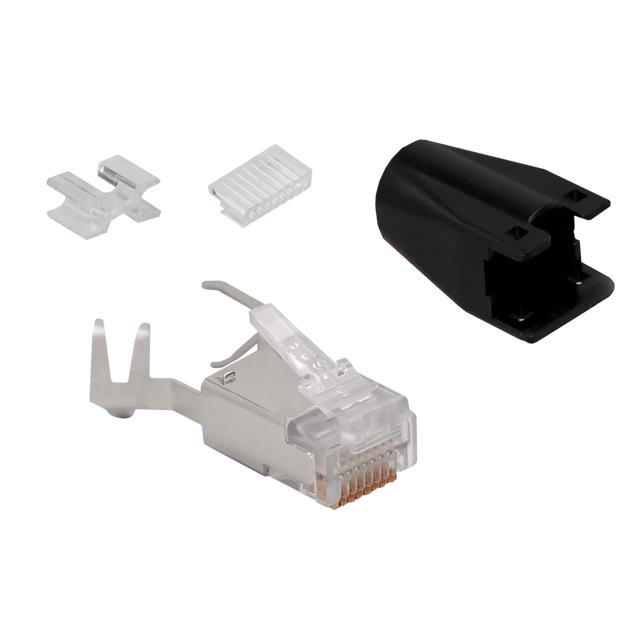

SS-39200-109
ActiveBel Fuse Inc.
MODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), 8P8C, CAT6, CAT6A, IP20, CABLE MOUNT
SS-39200-109
ActiveBel Fuse Inc.
MODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), 8P8C, CAT6, CAT6A, IP20, CABLE MOUNT
Description
General part information
SS-39200-109
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-39200-109 |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Color | Translucent - Clear, Black Boot, Translucent - Clear; Black Boot |
| Connector Type | Plug, Ethernet, RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Copper Alloy |
| Features | Cable Clamp, Boot |
| Housing Material | PC, Polycarbonate |
| Ingress Protection | IP20 |
| Length | 1.42 in |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat6a |
| Shield Material | Copper Alloy |
| Shielding | Shielded |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
