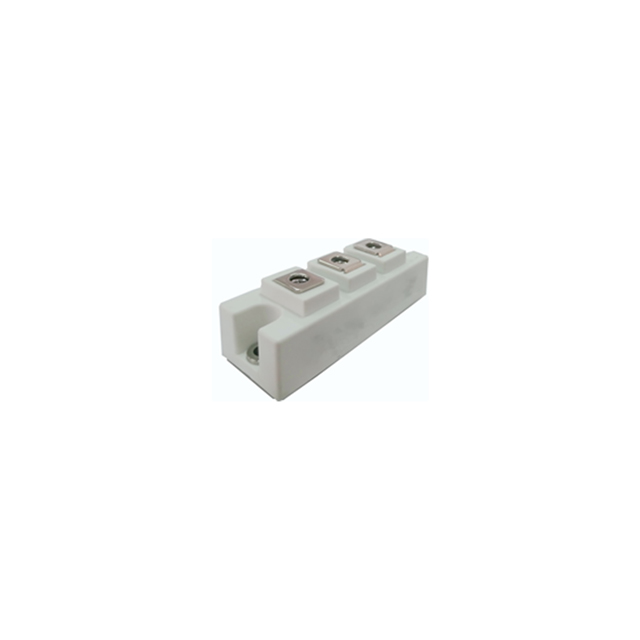

GSXD300A170S2D5

Obsolete

SemiQ

DIODE GP 1.7KV 300A ADD-A-PAK

Search across all available documentation for this part.

Obsolete

SemiQ

DIODE GP 1.7KV 300A ADD-A-PAK

Technical Specifications

Parameters and characteristics for this part

Specification	GSXD300A170S2D5

Current - Average Rectified (Io)	300 A
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	ADD-A-PAK (3)
Reverse Recovery Time (trr)	540 ns
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	ADD-A-PAK®
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1700 V
Voltage - Forward (Vf) (Max) @ If	1.9 V

DIODE GP 1.7KV 300A ADD-A-PAK

Part	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Supplier Device Package	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Mounting Type	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)
SemiQ GSXD300A170S2D5	1.9 V	540 ns	ADD-A-PAK®	ADD-A-PAK (3)	1700 V	Standard	Chassis Mount	Standard Recovery >500ns	200 mA	150 °C	-40 °C	300 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 1700 V 300A Chassis Mount ADD-A-PAK®

Technical documentation and resources

No documents available
