1/4POAHSRED4
ActiveRemington Industries
HEATSHRINK 3:1 PO 1/4" X 4' RED
1/4POAHSRED4
ActiveRemington Industries
HEATSHRINK 3:1 PO 1/4" X 4' RED
Description
General part information
1/4POAHSRED4

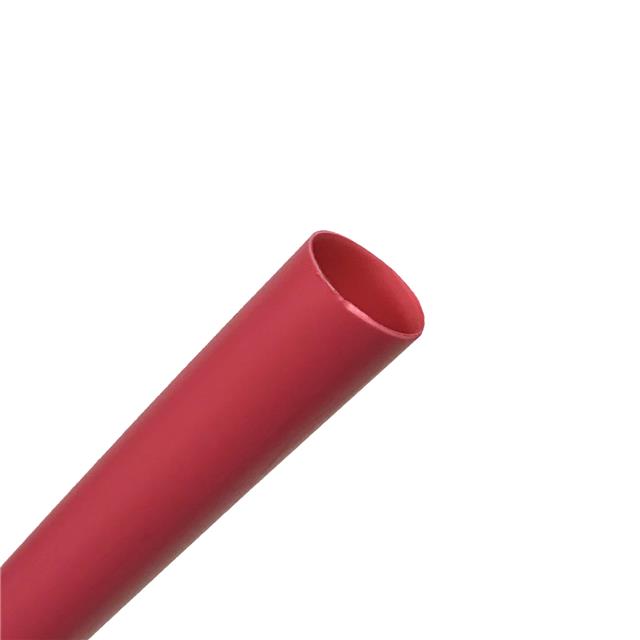

Heat Shrink Tubing, Flexible 0.250" (6.35mm) Red 4.00' (1.22m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1/4POAHSRED4 |
|---|---|
| Color | Red |
| Features | Fluid Resistant, Adhesive Lined |
| Inner Diameter - Recovered | 0.08 in |
| Inner Diameter - Supplied | 0.25 in |
| Length | 48 in |
| Material | Polyolefin (PO) |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -55 °C |
| Recovered Wall Thickness | 0.04 in |
| Shrink Temperature | 120 °C |
| Type | Flexible, Tubing |
