2007435-7
ActiveTE Connectivity AMP Connectors
HDMI, DISPLAYPORT & DVI CONNECTORS FLAG_HDMI CONNECTOR W/CAP
2007435-7
ActiveTE Connectivity AMP Connectors
HDMI, DISPLAYPORT & DVI CONNECTORS FLAG_HDMI CONNECTOR W/CAP
Description
General part information
2007435-7

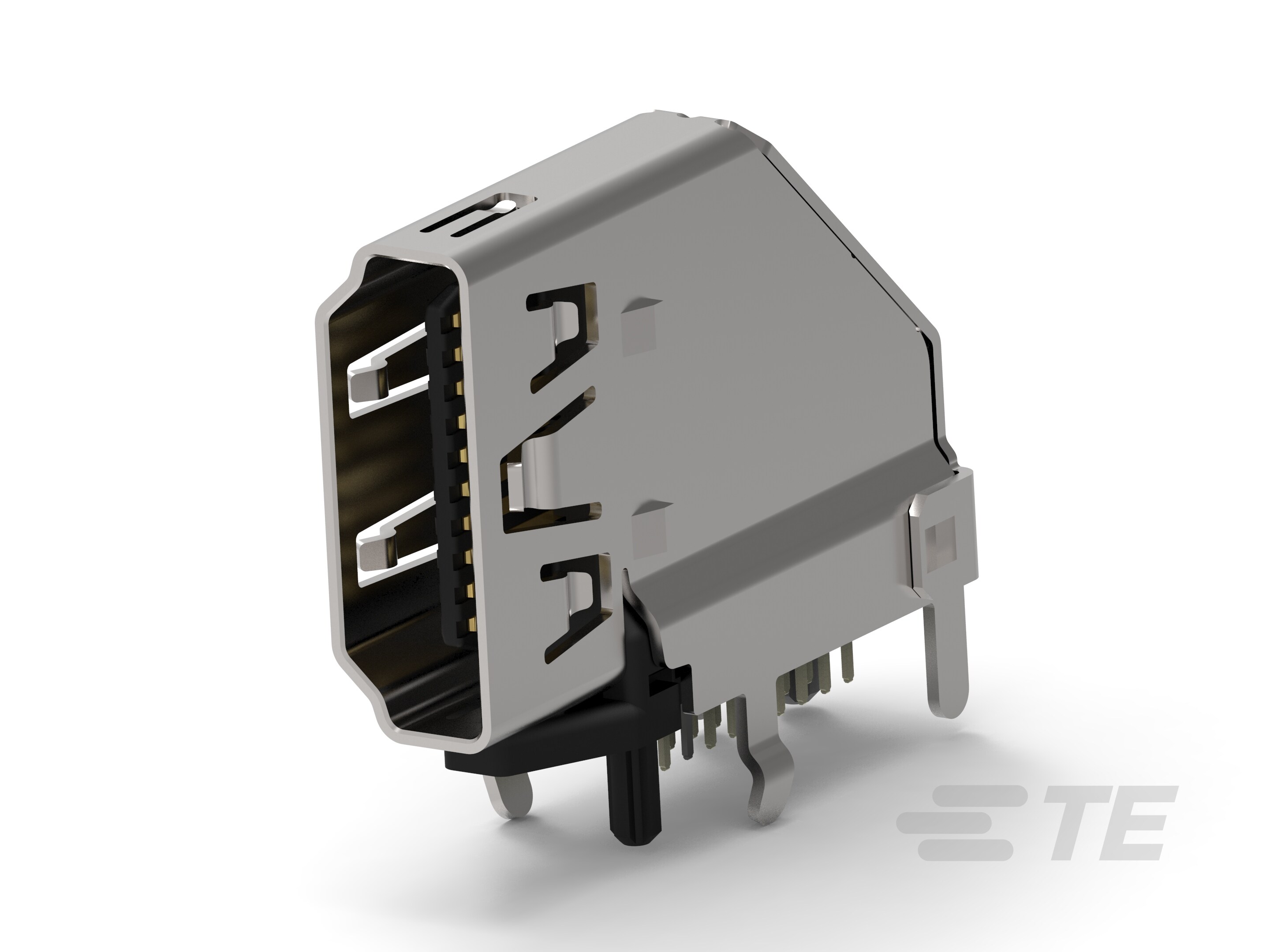

HDMI Connector Receptacle, Standard Profile, 1 Port, Top, Perpendicular Right Angle, Through Hole - Solder, Cable-to-Board, 19 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | 2007435-7 |
|---|---|
| Connector Type | HDMI |
| Current Rating | 0.5 A |
| Features | Cover |
| Gender | Receptacle |
| Mounting Feature | Vertical |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Contacts | 19 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
