Description
General part information

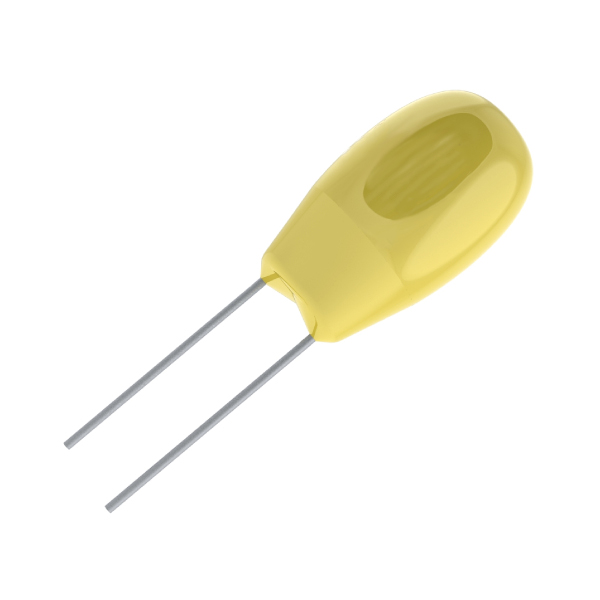

T352E106M025AS
10 µF Conformal Coated Tantalum Capacitors 25 V Radial, Disc 2.5Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T352E106M025AS |
|---|---|
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 2.5 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.461 in |
| Lead Spacing | 0.2 in |
| Manufacturer Size Code | T352E |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.217 in |
| Tolerance | 20 % |
| Type | Conformal Coated |
| Voltage - Rated | 25 VAC |
