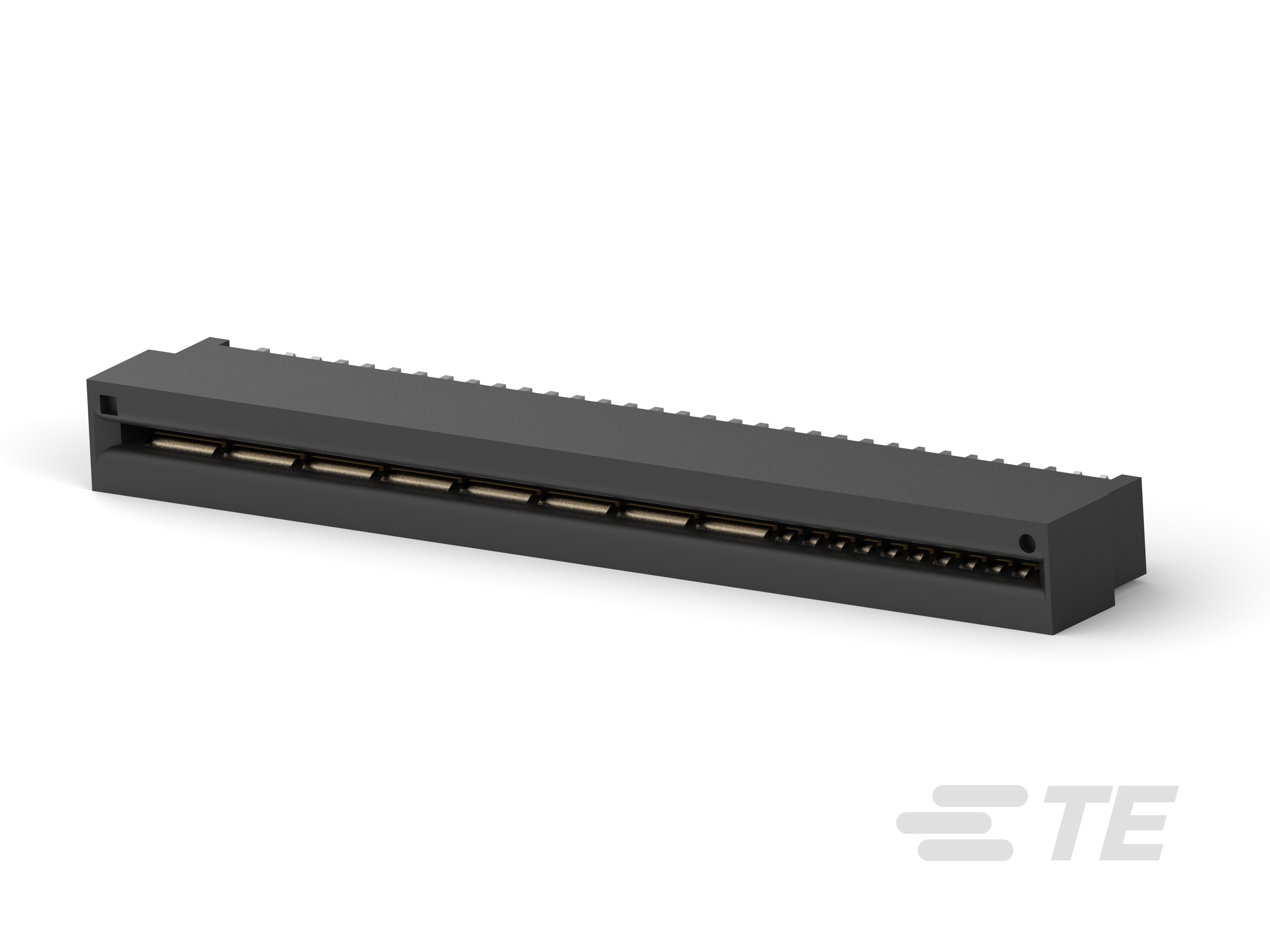

CONNECTOR ASSY, ULTRA HIGH CURRENT CARD
1761426-1
ActiveTE Connectivity AMP Connectors
CONNECTOR ASSY, ULTRA HIGH CURRENT CARD
Description
General part information
1761426-1
Board-to-Board Card Edge Power Connector, 36 Position, 7.62 mm [.1 in / .3 in] Centerline, Power, 18 Power Positions, 20 Signal Positions
Technical Specifications
Parameters and characteristics for this part
| Specification | 1761426-1 |
|---|---|
| Card Thickness | 0.062 in |
| Card Type | Non Specified, Dual Edge |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Material | Copper Alloy |
| Features | Board Lock |
| Gender | Female |
| Mounting Type | Through Hole |
| Number of Positions (Normal) | 20 |
| Number of Positions (Power) | 16 |
| Number of Positions (Total) | 36 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
