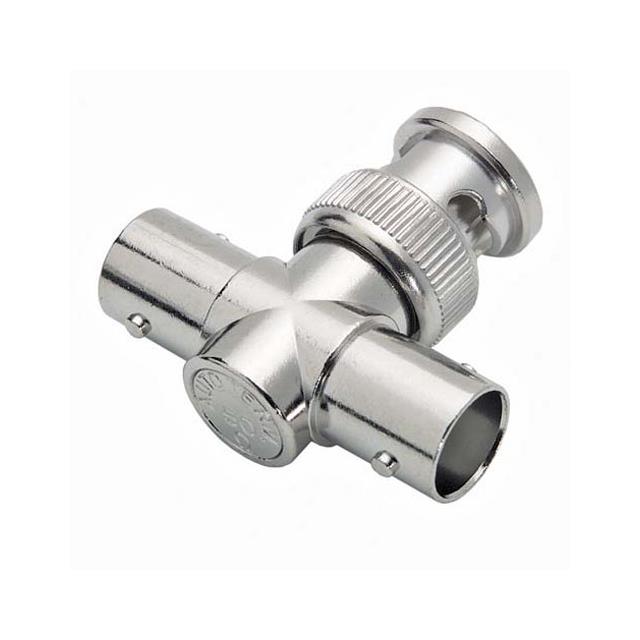

BA45-75
ActivePasternack
ADAP T AUTO TERM BNC 75 OHM
BA45-75
ActivePasternack
ADAP T AUTO TERM BNC 75 OHM
Description
General part information
BA45-75
Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BA45-75 |
|---|---|
| Adapter Series | BNC to BNC, Dual |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Zinc Alloy |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Male Pin, BNC Plug |
| Convert To (Adapter End) | Female Socket, BNC Jack |
| Convert To (Adapter End) Count | 2 count |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Threaded, Bayonet Lock |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | T-Shape |
