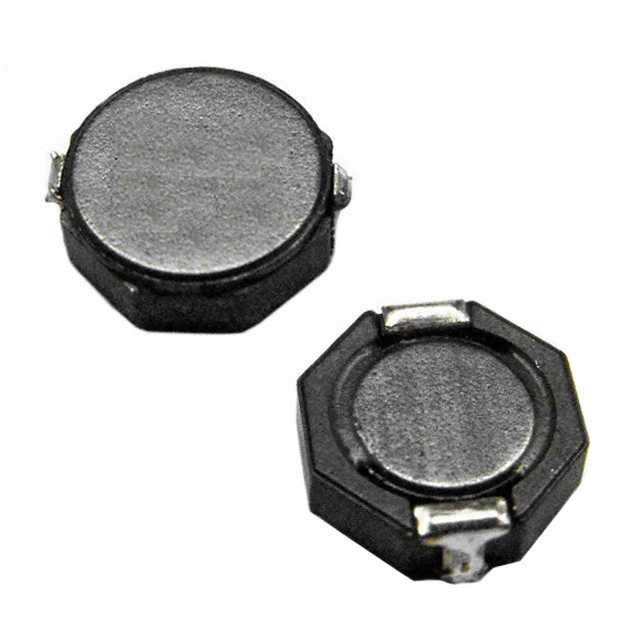

SCRH8D28-2R5
ActiveSignal Transformer
FIXED IND 2.5UH 4.5A 15.6MOHM SM
SCRH8D28-2R5
ActiveSignal Transformer
FIXED IND 2.5UH 4.5A 15.6MOHM SM
Description
General part information
SCRH8D28-2R5
2.5 µH Shielded Inductor 4.5 A 15.6mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCRH8D28-2R5 |
|---|---|
| Current - Saturation (Isat) | 4.5 A |
| Current Rating | 4.5 A |
| DC Resistance (DCR) (Max) | 15.6 mOhm |
| Height - Seated (Max) | 0.126 in |
| Inductance | 2.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.327 in |
| Size / Dimension Width | 0.327 in |
| Tolerance | 30 % |
