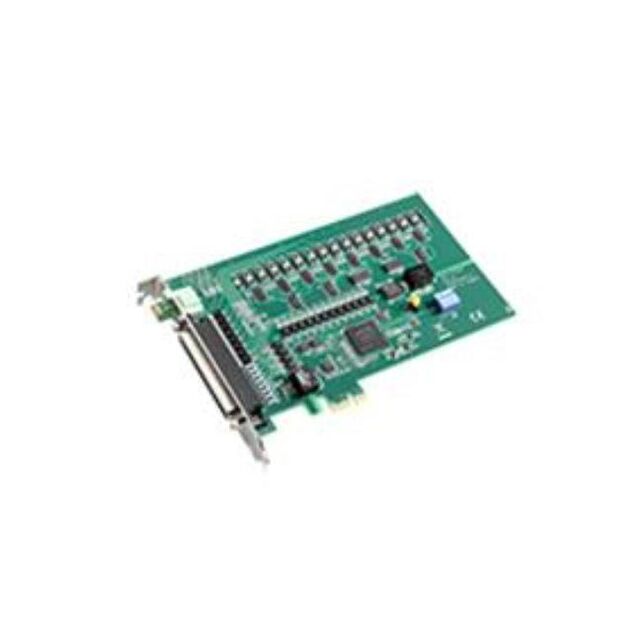

PCIE-1750U-AE
ActiveAdvantech Corporation
DATALOGGING & ACQUISITION 32-CH ISOLATED DIGITAL I/O PCI EXPRESS C
PCIE-1750U-AE
ActiveAdvantech Corporation
DATALOGGING & ACQUISITION 32-CH ISOLATED DIGITAL I/O PCI EXPRESS C
Description
General part information
PCIE-1750U-AE
Digital I/O Card PCIe D-Sub
Technical Specifications
Parameters and characteristics for this part
| Specification | PCIE-1750U-AE |
|---|---|
| Bus Connection | PCIe |
| Front Connection | D-Sub |
| Function | O, Digital I |
| Input Types | Digital |
| Input Voltage (Max) | 30 V |
| Input Voltage (Min) | 3 V |
| Number of Inputs | 16 |
| Number of Outputs | 16 |
| Output Type | Digital |
| Output Voltage Range (Max) | 40 V |
| Output Voltage Range (Min) | 5 V |
| Type | Card |
