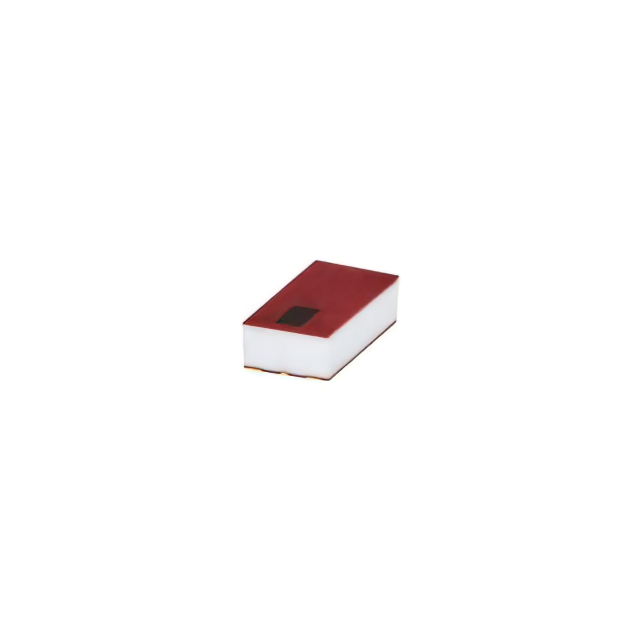

LFCN-3052+
ActiveMini-Circuits
FILTER
LFCN-3052+
ActiveMini-Circuits
FILTER
Description
General part information
LFCN-3052+
32GHz (Cutoff) Low Pass Ceramic Filter 50Ohm 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | LFCN-3052+ |
|---|---|
| Filter Type | Low Pass |
| Frequency | 32 GHz |
| Height (Max) | 0.036 in |
| Impedance | 50 Ohm |
| Insertion Loss | 1.7 dB |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
