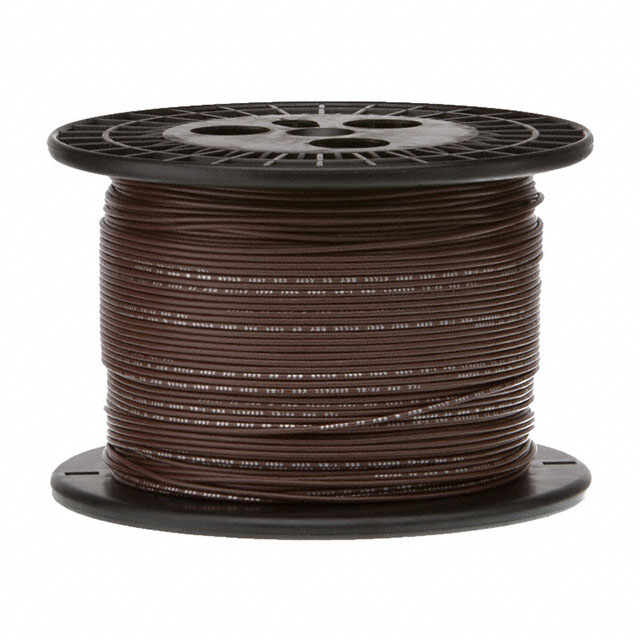

Specification	14STRBROGXL250

Cable Type	Hook-Up, Automotive
Conductor Material	Copper, Bare
Conductor Strand Count	19
Conductor Strand Gauge	27 AWG
Features	Abrasion Resistant, Solvent Resistant, Oil Resistant, Chemical Resistant
Jacket (Insulation) Diameter	0.114 in
Jacket (Insulation) Material	Polyethylene (XLPE)
Jacket (Insulation) Thickness	0.019 in
Jacket Color	Brown
Length	250 ft
Operating Temperature	125 °C
Voltage	60 V
Wire Gauge	14 AWG

14STR Series

...

Part	Jacket (Insulation) Diameter	Features	Conductor Material	Jacket (Insulation) Thickness	Cable Type	Conductor Strand Gauge	Conductor Strand Count	Length	Jacket Color	Wire Gauge	Voltage	Operating Temperature	Jacket (Insulation) Material	Operating Temperature (Min)	Operating Temperature (Max)
Remington Industries 14STRORAGXL500	0.114 in	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Bare Copper	0.019 in	Automotive Hook-Up	27 AWG	19	500 ft	Orange	14 AWG	60 V	125 °C	Polyethylene (XLPE)
Remington Industries 14STRREDTHHN100	0.102 in	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Bare Copper		Hook-Up	27 AWG	19	100 ft	Red	14 AWG	600 V		Nylon Polyamide (PA)
Remington Industries 14STRREDGXL250	0.114 in	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Bare Copper	0.019 in	Automotive Hook-Up	27 AWG	19	250 ft	Red	14 AWG	60 V	125 °C	Polyethylene (XLPE)
Remington Industries 14STRWHITHHN100	0.102 in	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Bare Copper		Hook-Up	27 AWG	19	100 ft	White	14 AWG	600 V		Nylon Polyamide (PA)
Remington Industries 14STRGREGPT25	0.117 in	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Bare Copper		Hook-Up	27 AWG	19	25 ft	Red	14 AWG	60 V		Poly-Vinyl Chloride (PVC)	-40 °C	85 °C
Remington Industries 14STRBLUUL1426250	0.117 in	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Copper Tinned		Hook-Up	27 AWG	19	250 ft	Blue	14 AWG	60 V		Poly-Vinyl Chloride (PVC)
Remington Industries 14STRYELUL14261000	0.117 in	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Copper Tinned		Hook-Up	27 AWG	19	1000 ft	Yellow	14 AWG	60 V		Poly-Vinyl Chloride (PVC)
Remington Industries 14STRGREUL1426250	0.117 in	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Copper Tinned		Hook-Up	27 AWG	19	250 ft	Green	14 AWG	60 V		Poly-Vinyl Chloride (PVC)
Remington Industries 14STRORAGXL1000	0.114 in	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Bare Copper	0.019 in	Automotive Hook-Up	27 AWG	19	1000 ft	Orange	14 AWG	60 V	125 °C	Polyethylene (XLPE)
Remington Industries 14STRWHIUL1426500	0.117 in	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Copper Tinned		Hook-Up	27 AWG	19	500 ft	White	14 AWG	60 V		Poly-Vinyl Chloride (PVC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

14STRBROGXL250 | Datasheet
