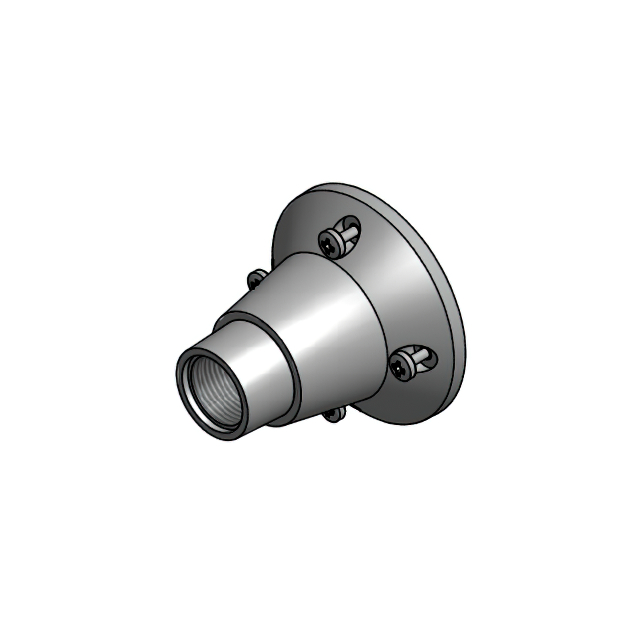

WMLPV800
ActiveMcGill Microwave Systems
RF ANT 883MHZ DOME PANEL MNT
WMLPV800
ActiveMcGill Microwave Systems
RF ANT 883MHZ DOME PANEL MNT
Description
General part information
WMLPV800
883MHz Dome RF Antenna 806MHz ~ 960MHz 3dBi Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | WMLPV800 |
|---|---|
| Antenna Type | Dome |
| Frequency (Center/Band) | 883 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 960 MHz |
| Frequency Range (Min) | 806 MHz |
| Gain | 3 dBi |
| Height (Max) | 15 in |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| VSWR | 2 |
