Description

General part information

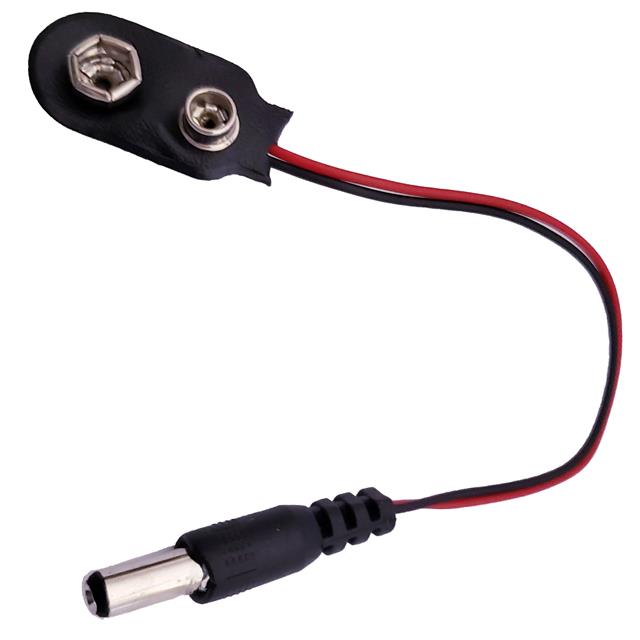

PART 9V BATTERY BARREL CONNECTOR

Battery Connector, Snap 9V 1 Cell Barrel Plug, 2.1mm I.D. x 5.5mm O.D.

Technical Specifications

Parameters and characteristics for this part

SpecificationPART 9V BATTERY BARREL CONNECTOR
Battery Cell Voltage9 V
Battery TypeSnap Connector
Function Voltage9 V
Mounting TypeFree Hanging
Number of Cells1
StyleConnector, Snap
Termination I.D.2.1 mm
Termination Length2.1 mm
Termination O.D.5.5 mm
Termination StyleBarrel Plug
