KIT,RCPT,9P,HDP-20,SHLD HDWRE-5748536-1

5748536-1

Active
TE Connectivity AMP Connectors

D SUB CONNECTOR HOUSING, 9 POSITIONS, D SUB, DE, AMPLIMITE HDP-20 SERIES, RECEPTACLE, METAL BODY

Find alt
KIT,RCPT,9P,HDP-20,SHLD HDWRE-5748536-1

5748536-1

Active
TE Connectivity AMP Connectors

D SUB CONNECTOR HOUSING, 9 POSITIONS, D SUB, DE, AMPLIMITE HDP-20 SERIES, RECEPTACLE, METAL BODY

Find alt

Description

General part information

5748536-1

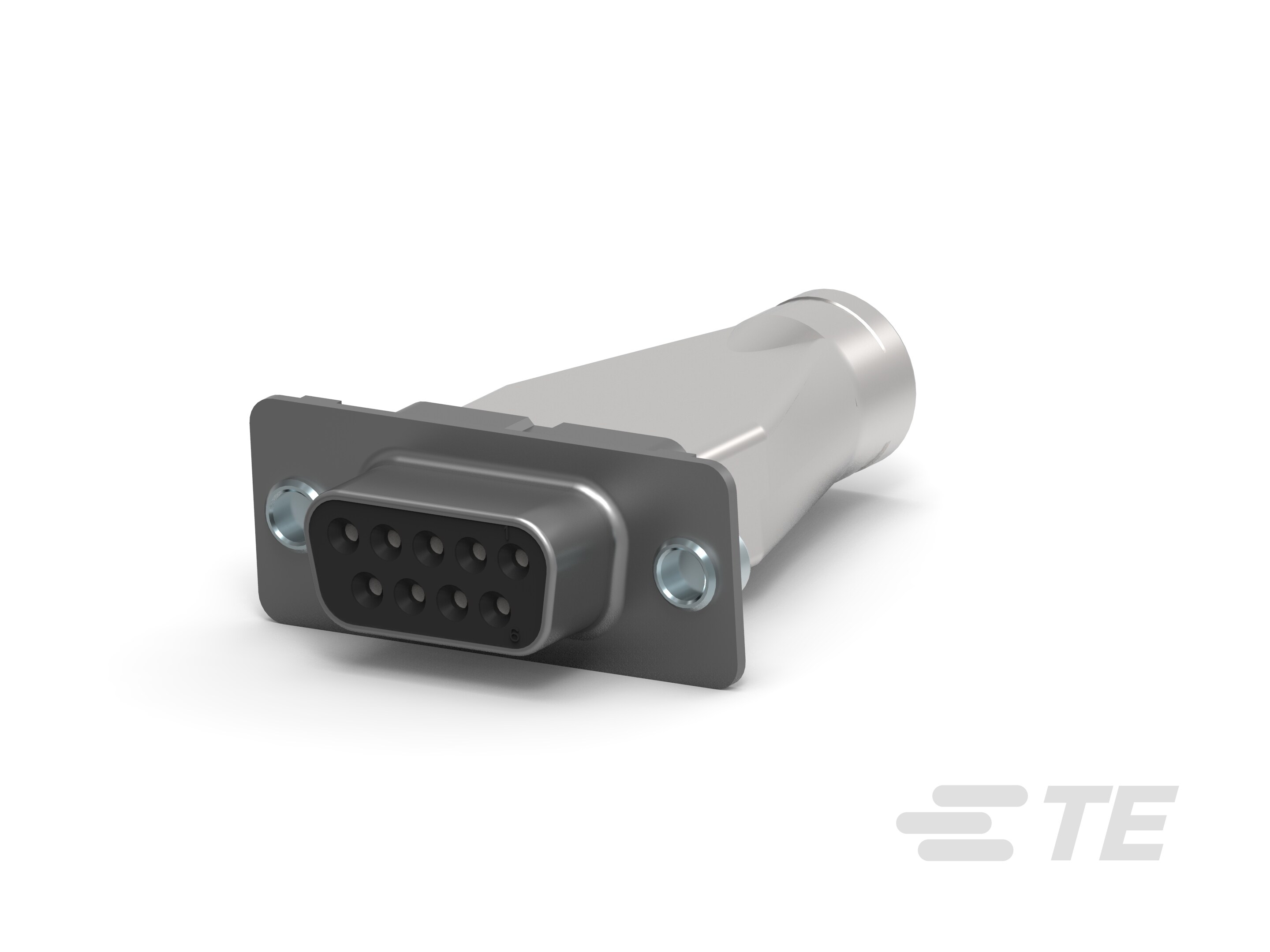

9 Position D-Shaped Connector, Receptacle, Cable-to-Cable, Panel Mount, 1 Shell Size, 2.77 mm [.109 in] Centerline, Wire & Cable, Signal

Technical Specifications

Parameters and characteristics for this part

Specification5748536-1
Connector LayoutDE, E
Connector StyleD-Sub
Connector TypeReceptacle for Female Contacts
Contact TypeSignal
FeaturesShielded, Backshell
FinishTin Plated
Flange FeatureCable Side (4-40)
Mounting TypeFree Hanging (In-Line)
Number of Positions9
Number of Rows2
Shell Finish Thickness200 µin
Shell MaterialSteel
Shell Size1
