Description
General part information

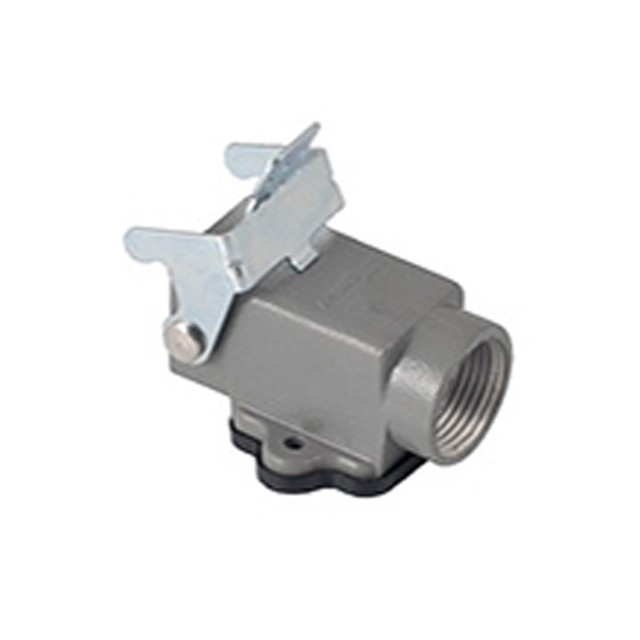

0936010631
3A STD MET. BULK.HOUS. 1LEVSS S/
Technical Specifications
Parameters and characteristics for this part
| Specification | 0936010631 |
|---|---|
| Connector Angle | 90 |
| Connector Type | Base - Panel Mount, Base - Panel Mount 90° |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Size | 3A |
| Style | Side Entry |
| Thread Size | PG11 |
